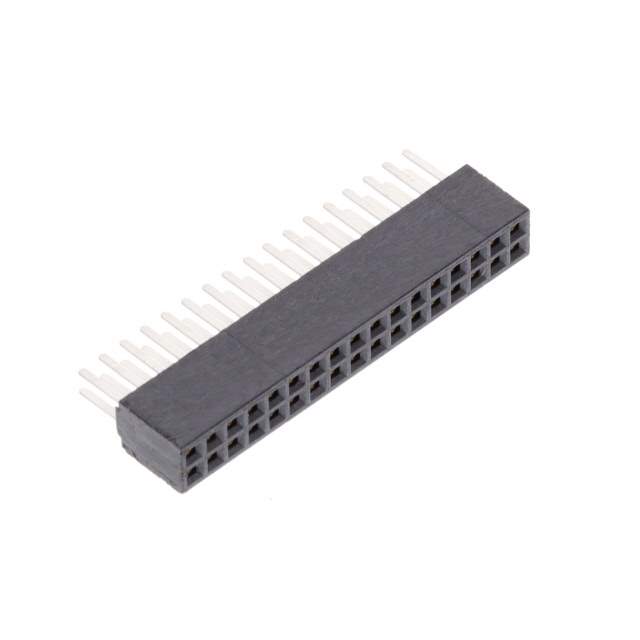

The Samtec Inc. 1055522 is a rectangular connector with headers, receptacles, and female sockets.

• Series: Tiger Eye™ SFMC
• Positions: 34
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: Two
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tube
• Contact Material: Beryllium Copper
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black
• Style: Board-to-Board or Cable
• Pitch: 0.050" (1.27mm)
• Contact Finish: Gold (10.0µin (0.25µm) mating, Tin post)
• Contact Finish Thickness Post: Not Specified
• Mounting Type: Through-Hole
• Row Spacing: 0.050" (1.27mm)
• Contact Length Post: 0.120" (3.05mm)
• Insulation Height: 0.180" (4.57mm)
• Contact Shape: Square
• Temperature Range: -55°C ~ 125°C
