Same model may have multiple batches, images only for reference.

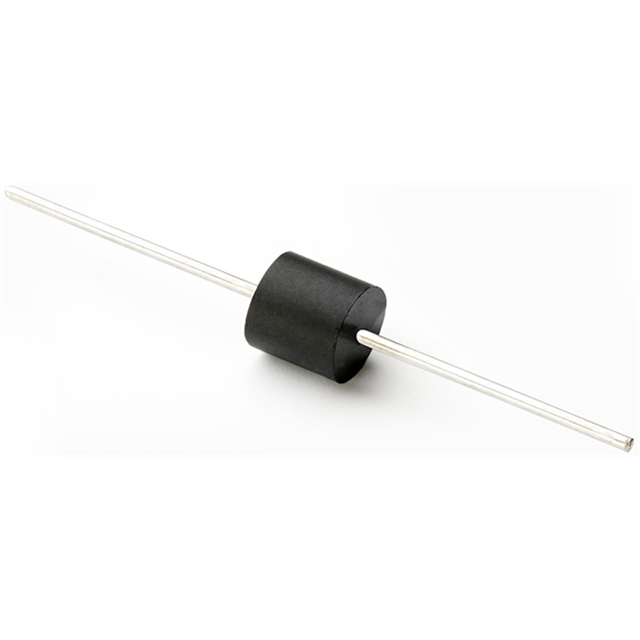

15KPA90CA Real Image
Same model may have multiple batches, images only for reference.

15KPA90CA

Part No 15KPA90CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 90V 145.6V P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff 90V
Voltage - Breakdown (Minimum) 100.5V
Voltage - Clamping (Maximum) at Ipp 145.6V
Current - Peak Pulse (10/1000μs) 103.7A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package P600, Axial
Supplier Device Package P600
Manufacturer Pack Quantity 1
MSL Level Not Applicable
Win Source Part Number 1121366-15KPA90CA
Manufacturer Homepage www.weitron.com.tw
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 15KPA90CA CAD Model

Description

The Littelfuse Inc. 1121366-15KPA90CA is a medium-popularity electronic component that has limited supply and demand. It is a Zener type component that is mounted through hole and is ideal for general purpose applications. It has a current peak pulse of 103.7A and a power peak pulse of 15000W (15kW). This component is manufactured by Littelfuse Inc. and has a Win Source Part Number of 1121366-15KPA90CA.
