Same model may have multiple batches, images only for reference.

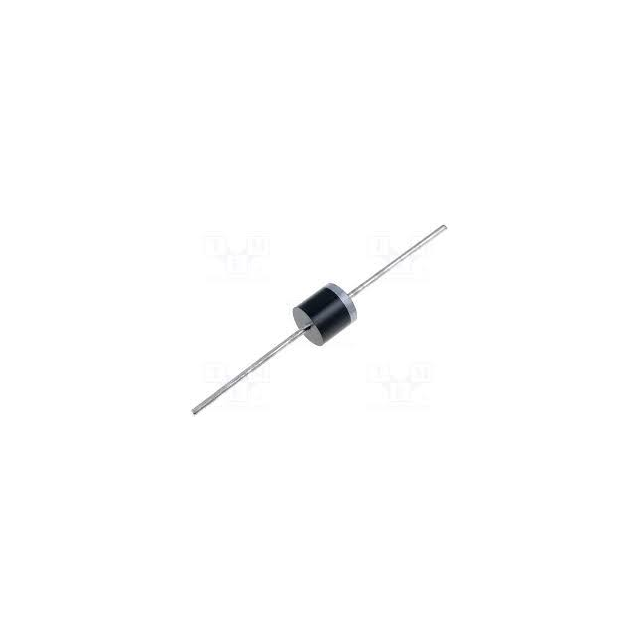

15KP90CA Real Image
Same model may have multiple batches, images only for reference.

15KP90CA

Part No 15KP90CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 90V 146V P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Tape and Reel
Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff 90V
Voltage - Breakdown (Minimum) 100V
Voltage - Clamping (Maximum) at Ipp 146V
Current - Peak Pulse (10/1000μs) 103A
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package P600, Axial
Supplier Device Package P600
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Win Source Part Number 1121360-15KP90CA
Manufacturer Homepage www.eicsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 15KP90CA CAD Model

Description

The Littelfuse Inc. 15KP90CA is a bidirectional Zener TVS diode with a reverse standoff voltage of 90V and a breakdown voltage of 100V.

  • Type: Bidirectional Zener TVS
  • Reverse Standoff Voltage: 90V
  • Breakdown Voltage: 100V
  • Clamping Voltage: 146V @ 15000W
  • Peak Pulse Power: 15000W
  • Peak Pulse Current: 103A
  • Application: General Purpose
  • Package: P600 Axial
  • Mounting: Through Hole
  • Operating Temperature: -55°C to 175°C
  • Manufacturer Pack Quantity: 800 units
