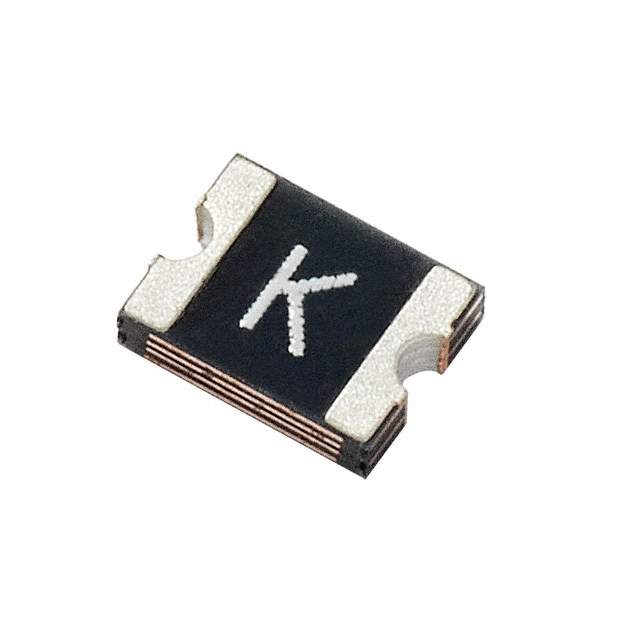

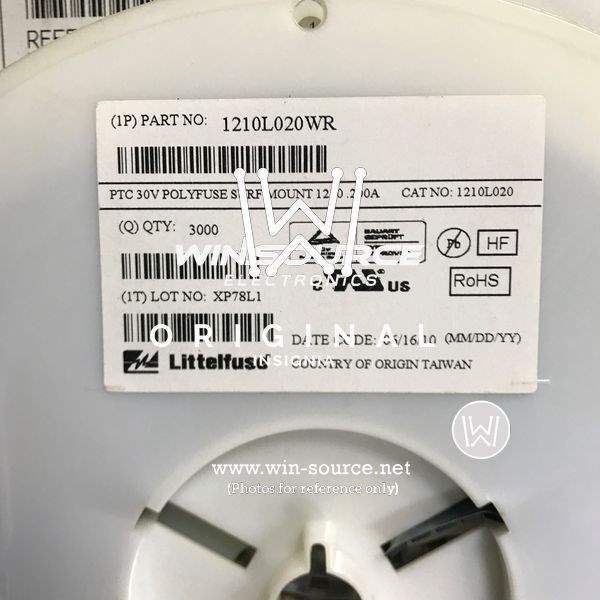

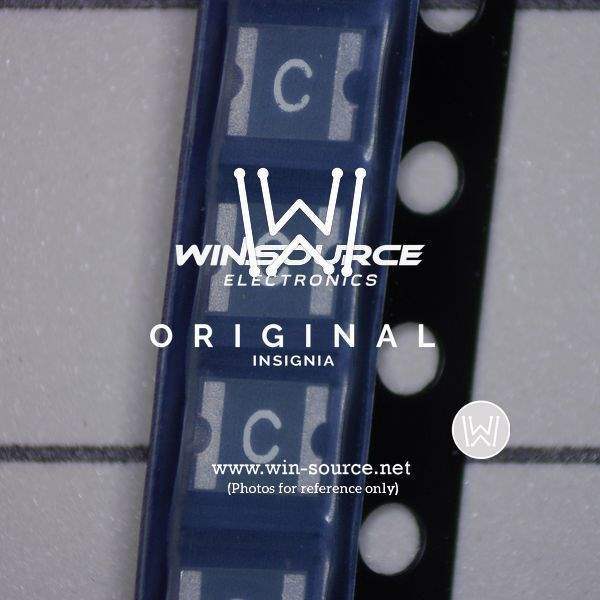

1210L020WR Real Image 1210L020WR real image 1210L020WR label picture
Same model may have multiple batches, images only for reference.
1210L020WR Real Image 1210L020WR real image 1210L020WR label picture
1210L020WR Real Image 1210L020WR real image 1210L020WR label picture
Same model may have multiple batches, images only for reference.

1210L020WR

Part No 1210L020WR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET 30V .200A SMD 1210
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 10A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 400mA
Time to Trip 20ms
Resistance - Initial (Ri) (Min) 800 mOhm
Resistance - Post Trip (R1) (Max) 5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.039" (1.00mm)
Approvals cURus, TUV
Win Source Part Number 1001252-1210L020WR
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian 1210L020WR CAD Model

Description

The Littelfuse Inc. 1210L020WR is a polymeric PTC resettable fuse with a maximum voltage rating of 30V and a maximum current rating of 10A.

  • Maximum Voltage Rating: 30V
  • Maximum Current Rating: 10A
  • Mounting: SMD package
  • Thickness: 0.039" (1.00mm)
  • Resistance - Initial (Ri) (Min): 800 mOhm
  • Resistance - Post Trip (R1) (Max): 5 Ohm
  • Temperature Range: -40°C to 85°C
  • Response Time: 20ms
  • Category: Circuit protection
  • Status: Active
