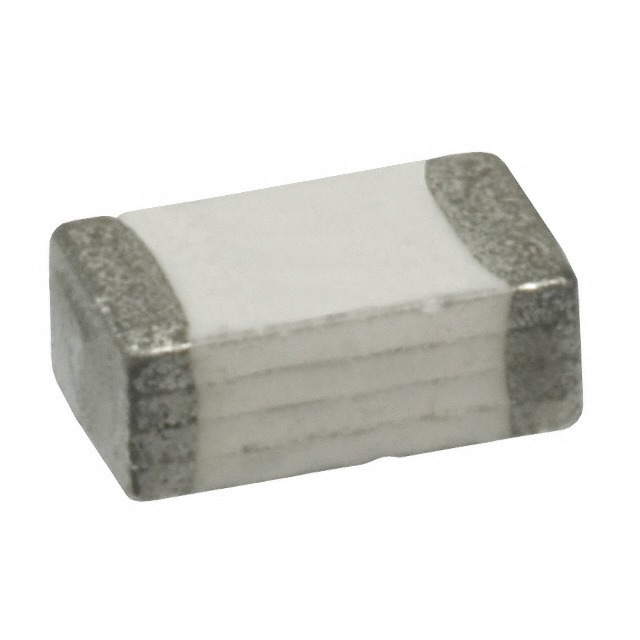

1206SFS500F/32-2 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

1206SFS500F/32-2

Part No 1206SFS500F/32-2
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Fuse Chip Slow Blow Acting 5A 32V SMD Solder Pad 1206 T/R / FUSE BOARD MOUNT 5A 32VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5A
Voltage Rating - DC 32V
Response Time Slow Blow
Manufacturer Package 1206
Mounting Style SMD
Breaking Capacity at Rated Voltage 50A
Melting I2t 5.3
Approvals UL
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
DC Cold Resistance 0.016 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 717131-1206SFS500F/32-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name 1206SFS
Introduction Date November 09, 2015
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1206SFS500F/32-2 CAD Model

Description

The Littelfuse Inc. 717131-1206SFS500F/32-2 is a high-popularity board-mount fuse with slow-blow response time.

  • Voltage Rating: 32V
  • Current Rating: 5A
  • UL Approved: Yes
  • DC Cold Resistance: 0.016 Ohms
  • Suitable For: Circuit protection applications
  • Breaking Capacity: 50A @ rated voltage
  • Manufacturer's Homepage: www.littelfuse.com
