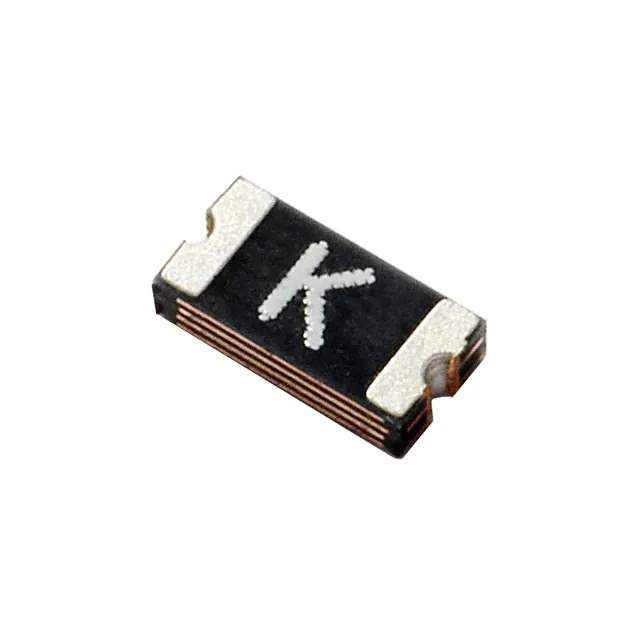

Same model may have multiple batches, images only for reference.

1206L400SLWR

Name: 1206L400SLWR
Brand: Littelfuse Inc.
SKU: 853830
Availability: InStock
Rating: 4.85 (219 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1206L400SLWR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 6V 4A 1206
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, LoRho
Package	Tape & Reel
Product Status	Active
Type	Polymeric
Voltage - Max	6V
Current - Hold (Ih) (Max)	4 A
Current - Trip (It)	8 A
Current - Max	50 A
Time to Trip	2 s
Resistance - Initial (Ri) (Min)	1 mOhms
Resistance - Post Trip (R1) (Max)	14 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric), Concave
Size / Dimension	0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max)	0.055" (1.40mm)
Approval Agency	cURus, TUV
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
California Prop 65	Warning Information
Win Source Part Number	853830-1206L400SLWR
Ultra Librarian 3D Model	Ultra Librarian 1206L400SLWR CAD Model

Alternative Products

Alternative Product Part Number	Manufacturer	Package	Country	Similarity
1206L400SL-SYR	Littelfuse	1206 (3216 Metric), Concave	United States	PIN-TO-PIN

Description

The 853830-1206L400SLWR is a polymeric PTC resettable fuse from Littelfuse Inc.

Series: POLY-FUSE® LoRho
Mounting: surface mount
Package size: 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness: 0.055" (1.40mm)
Maximum voltage: 6V
Maximum current: 50A
Hold current (Ih): 4A
Trip current (It): 8A
Time to trip: 2 seconds
Temperature range: -40°C to 85°C
Initial resistance (Ri): 1 mOhms
Post-trip resistance (R1): 14 mOhms
Packaging: tape & reel package of 3,000 pieces
Approvals: cURus and TUV
Status: active and available for purchase
