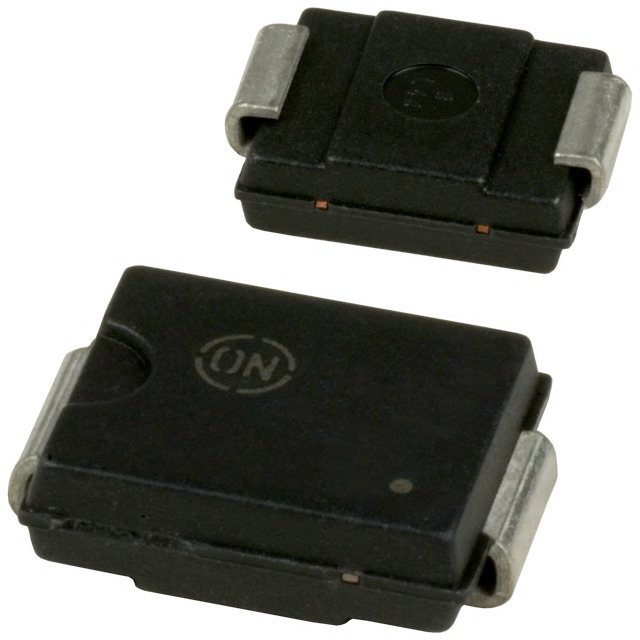

Same model may have multiple batches, images only for reference.
1.5SMC22AT3G Littelfuse Inc.
Same model may have multiple batches, images only for reference.

1.5SMC22AT3G

Part No 1.5SMC22AT3G
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description 1500 Watt Peak Power Zener Transient Voltage Suppressors Unidirectional* | TVS DIODE 18.8V 30.6V SMC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 18.8V
Voltage - Breakdown (Minimum) 20.9V
Voltage - Clamping (Maximum) at Ipp 30.6V
Current - Peak Pulse (10/1000μs) 49A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C
Mounting Style SMD
Manufacturer Package DO-214AB, SMC
Supplier Device Package SMC
Family Part Number 1.5SMC
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120843-1.5SMC22AT3G
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1.5SMC22AT3G CAD Model

Description

The Littelfuse Inc. 1.5SMC22AT3G is a Zener type electronic component that is used for general purpose applications.

  • Packaging: It is packaged in a reel.
  • Channel: has a unidirectional channel.
  • Peak Pulse Current: The device can handle a peak pulse current of 49A.
  • Peak Pulse Power: has a peak pulse power of 1500W.
  • Package: It is packaged in an SMC package.
  • Operating Temperature: can operate in a temperature range of -65°C to 150°C.
  • Status: The 1.5SMC22AT3G is an obsolete device.
  • Popularity: a medium popularity in the market.
  • Manufacturer: The device is manufactured by Littelfuse Inc.
