Same model may have multiple batches, images only for reference.

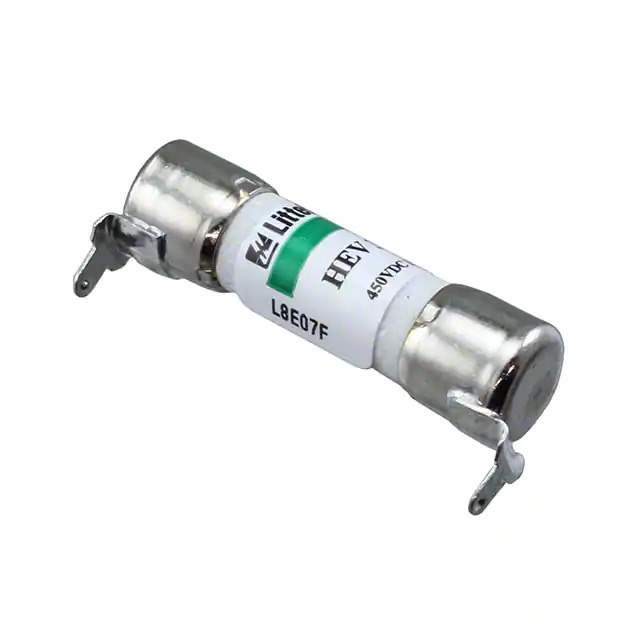

0HEV030.ZXPCBL Real Image
Same model may have multiple batches, images only for reference.

0HEV030.ZXPCBL

Part No 0HEV030.ZXPCBL
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 30A 450VDC 5AG
Datasheet
0HEV030.ZXPCBL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series LC HEV
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Type Cartridge
Current Rating (Amps) 30A
Voltage Rating - DC 450 V
Applications Lift Trucks
Temperature Range - Operating -40°C ~ 125°C
Breaking Capacity @ Rated Voltage 10kA
Package / Case 5AG, 10mm x 38mm w/PC Pins (Midget)
Size / Dimension 0.406" Dia x 1.532" L (10.30mm x 38.90mm)
Melting I2t 993
DC Cold Resistance 0.0027 Ohms
Standard Package 350 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 853455-0HEV030.ZXPCBL
Ultra Librarian 3D Model Ultra Librarian 0HEV030.ZXPCBL CAD Model

Description

The LC HEV series electrical specialty fuse is designed for use in lift trucks and other applications requiring reliable circuit protection.

  • Voltage Rating: 450V DC
  • Breaking Capacity: 10kA
  • Size: 0.406" Dia x 1.532" L (10.30mm x 38.90mm)
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 125°C
