Same model may have multiple batches, images only for reference.

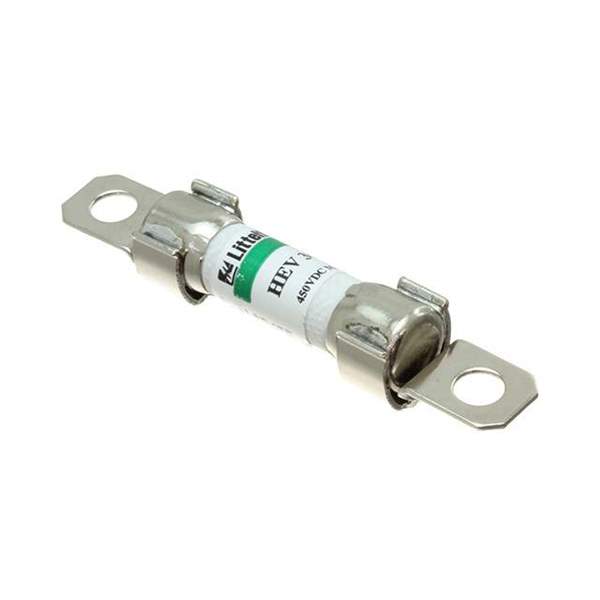

0HEV015.ZXBD Real Image
Same model may have multiple batches, images only for reference.

0HEV015.ZXBD

Part No 0HEV015.ZXBD
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 15A 450VDC BOLT / 15A AC 450 V DC Fuse Cartridge Bolt Mount
Datasheet
0HEV015.ZXBD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series LC HEV
Package Bulk
Mounting Type Bolt Mount
Fuse Type Cartridge
Current Rating (Amps) 15A
Voltage Rating - DC 450 V
Applications Lift Trucks
Temperature Range - Operating -40°C ~ 125°C
Breaking Capacity @ Rated Voltage 10kA
Package / Case Cylindrical, Blade Terminal (Bolt)
Dimension 0.469" Dia x 2.559" L (11.90mm x 65.00mm)
Melting I2t 133
DC Cold Resistance 0.0079 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0HEV015.ZXBD-ND,F12027,-0HEV015.ZXBD
Standard Package 240
Win Source Part Number 1208742-0HEV015.ZXBD
Ultra Librarian 3D Model Ultra Librarian 0HEV015.ZXBD CAD Model

Description

The LC HEV 1208742-0HEV015.ZXBD is a cartridge fuse that is designed to provide reliable circuit protection in lift trucks.

  • Series: LC HEV
  • Voltage Rating: 450 VDC
  • Current Rating: 15A
  • Breaking Capacity: 10kA
  • Package: Cylindrical, Blade Terminal (Bolt)
  • Mounting Type: Bolt Mount
  • Supply and Demand Status: Balance
  • Dimension: 0.469" Dia x 2.559" L (11.90mm x 65.00mm)
  • Operating Temperature Range: -40°C ~ 125°C
