Same model may have multiple batches, images only for reference.

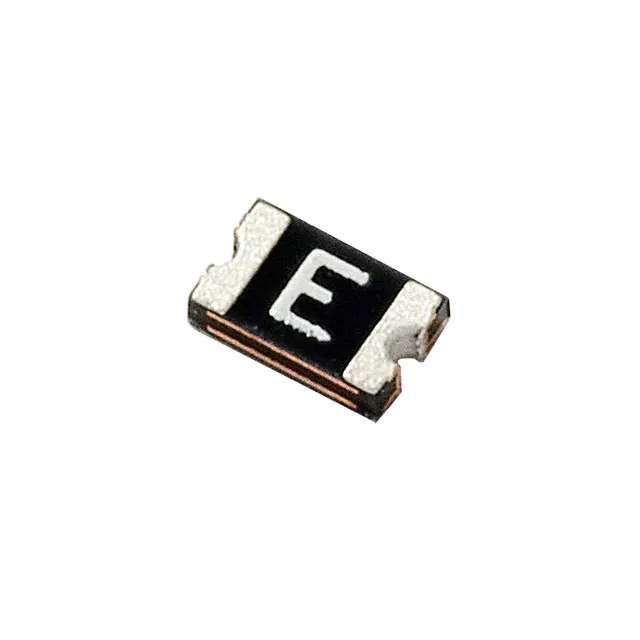

0805L200SLTHYR Real Image
Same model may have multiple batches, images only for reference.

0805L200SLTHYR

Part No 0805L200SLTHYR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 2A 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, LoRho
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 2 A
Current - Trip (It) 4 A
Current - Max 50 A
Time to Trip 1 s
Resistance - Initial (Ri) (Min) 5 mOhms
Resistance - Post Trip (R1) (Max) 45 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), Concave
Size / Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.030" (0.75mm)
Approval Agency cURus, TUV
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 853415-0805L200SLTHYR
Ultra Librarian 3D Model Ultra Librarian 0805L200SLTHYR CAD Model

Description

The 853415-0805L200SLTHYR is a polymeric PTC resettable fuse designed for circuit protection.

  • Category: Circuit Protection - PTC Resettable Fuses
  • Series: POLY-FUSE®, LoRho
  • Voltage Rating: 6V
  • Current Rating: 50 A
  • Current Hold (Ih): 2 A
  • Current Trip (It): 4 A
  • Time to Trip: 1 s
  • Mounting Type: Surface Mountable
  • Package/Case: 0805 (2012 Metric), Concave
  • Resistance (Initial): 5 mOhms
  • Resistance (Post Trip): 45 mOhms
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Littelfuse Inc.
  • Status: Active
  • Approval: cURus and TUV
