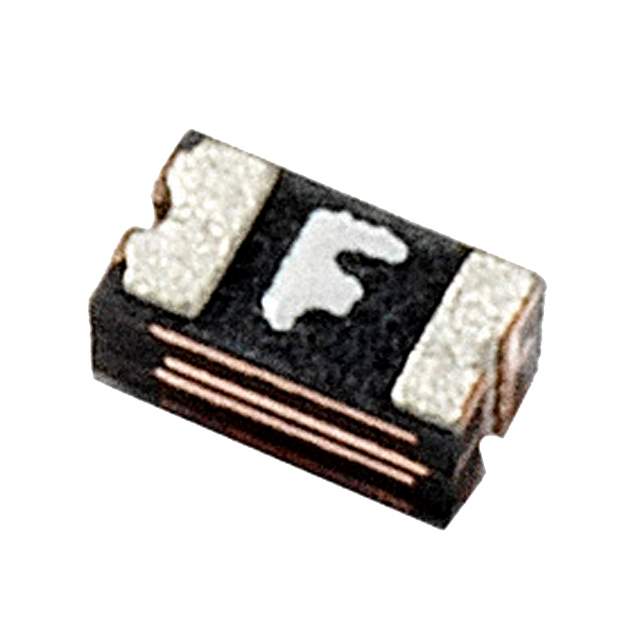

0603L050YR Real Image
Same model may have multiple batches, images only for reference.

0603L050YR

Part No 0603L050YR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 6V 0.50A SMD 0603
Datasheet
0603L050YR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 100 mOhm
Resistance - Post Trip (R1) (Max) 680 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Max) 0.061" (1.55mm)
Approvals cURus, TUV
Win Source Part Number 1000298-0603L050YR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 0603L050YR CAD Model

Description

The Littelfuse Inc. 1000298-0603L050YR is a polymeric type circuit protection component with a current rating of 40A and voltage rating of 6V.

  • Manufacturer: Littelfuse Inc.
  • Product Name: 1000298-0603L050YR
  • Type: Polymeric Circuit Protection
  • Current Rating: 40A
  • Voltage Rating: 6V
  • Mounting Type: SMD (SMT)
  • Thickness: 0.061 inches (1.55mm)
  • Approvals: cURus and TUV
  • Current Hold: 500mA
  • Trip Current: 1A
  • Time to Trip: 100ms
  • Resistance: 100 mOhm and 680 mOhm (post-trip)
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.063 inches L x 0.032 inches W (1.60mm x 0.80mm)
  • Category: Circuit Protection
  • Product Status: Active
