Same model may have multiple batches, images only for reference.

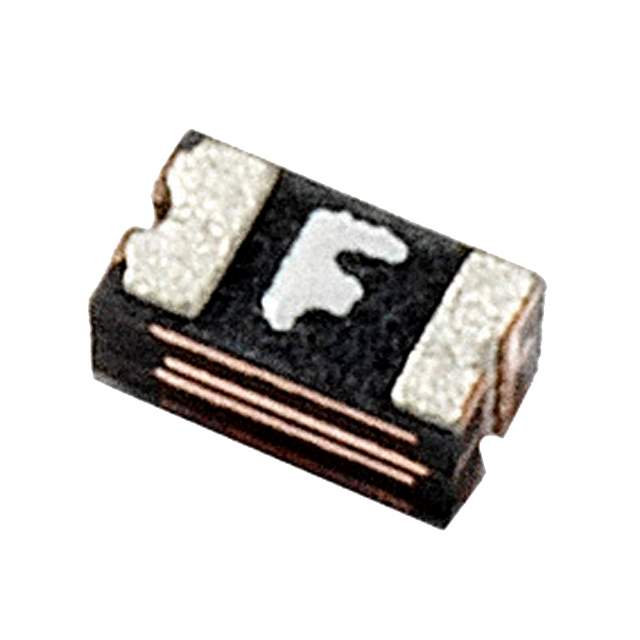

0603L020YR Real Image
Same model may have multiple batches, images only for reference.

0603L020YR

Part No 0603L020YR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 9V .20A SMD 0603
Datasheet
0603L020YR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 9V
Current - Max 40A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 500mA
Time to Trip 600ms
Resistance - Initial (Ri) (Min) 550 mOhm
Resistance - Post Trip (R1) (Max) 3.5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Max) 0.030" (0.75mm)
Approvals cURus, TUV
Win Source Part Number 1000295-0603L020YR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 0603L020YR CAD Model

Description

The Littelfuse Inc. 1000295-0603L020YR is a polymeric type circuit protection component with a voltage - max of 9V and current - max of 40A.

  • Component Type: Polymeric type circuit protection
  • Voltage - Max: 9V
  • Current - Max: 40A
  • Approvals: cURus and TUV
  • Mounting: SMD (SMT) technology
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
  • Thickness (Max): 0.030" (0.75mm)
  • Current - Hold (Ih) (Max): 200mA
  • Current - Trip (It): 500mA
  • Time to Trip: 600ms
  • Resistance - Initial (Ri) (Min): 550 mOhm
  • Resistance - Post Trip (R1) (Max): 3.5 Ohm
  • Supply and Demand Status: Sufficient
