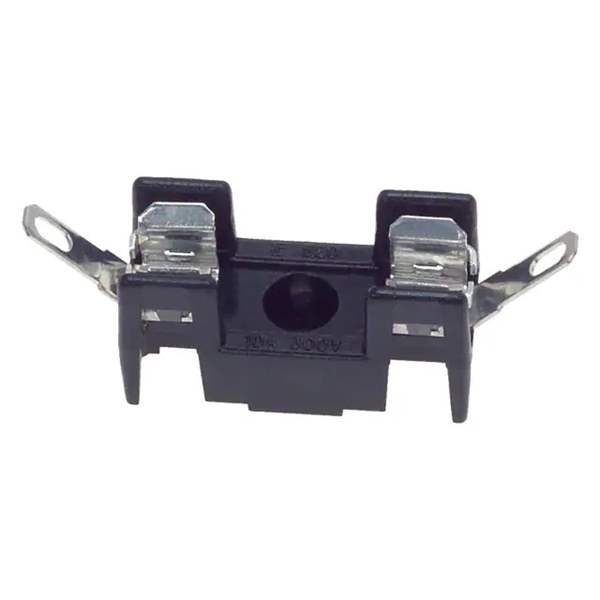

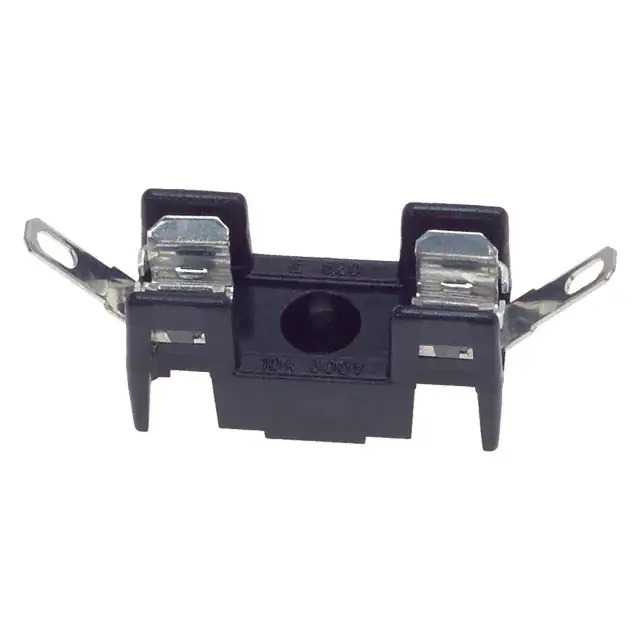

05200004Z Littelfuse Inc.
Same model may have multiple batches, images only for reference.

05200004Z

Part No 05200004Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE BLOCK CART 600V 10A CHASSIS / Fuse Block 10 A 600V 1 Circuit Cartridge Chassis Mount
Datasheet
05200004Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series OMNI-BLOK® 520
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Current Rating (Amps) 10 A
For Use With/Related Products 5mm x 20mm
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Voltage 600V
Orientation -
Termination Style Solder Lug
Contact Material Brass
Contact Finish Tin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361496-05200004Z
Ultra Librarian 3D Model Ultra Librarian 05200004Z CAD Model

Description

The 1361496-05200004Z is a fuseholder manufactured by Littelfuse Inc.

  • Series: OMNI-BLOK™ 520
  • Mounting Type: Chassis
  • Current Rating: 10A
  • Voltage Rating: 600V
  • Finish: Tin
  • Material: Brass
  • Termination Style: Solder Lug
  • Fuse Size: 5mm x 20mm
