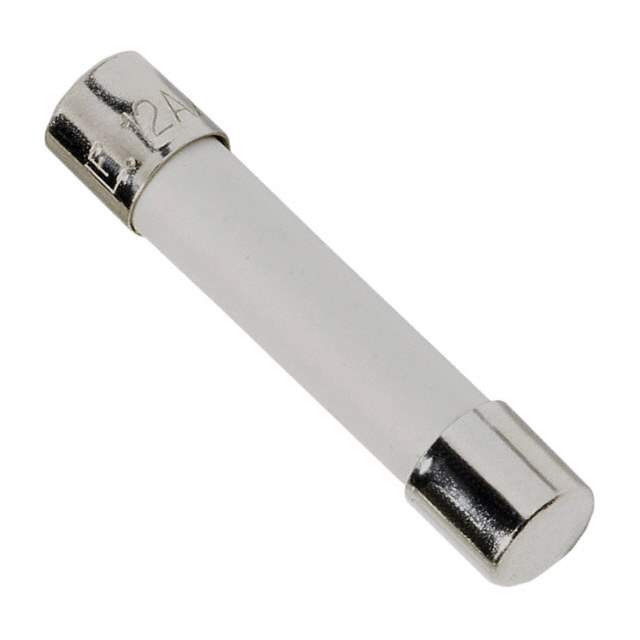

0505025.MXP Real Image
Same model may have multiple batches, images only for reference.

0505025.MXP

Part No 0505025.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 25A 500VAC/VDC 3AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 25A
Voltage Rating - AC 500V
Voltage Rating - DC 500V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4"
Mounting Style Holder
Breaking Capacity at Rated Voltage 30kA AC, 20kA DC
Melting I2t 145
Approvals CE, cULus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.0048 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808112-0505025.MXP
Ultra Librarian 3D Model Ultra Librarian 0505025.MXP CAD Model

Description

The Littelfuse Inc. 808112-0505025.MXP is a fast blow ceramic cartridge fuse holder with a voltage rating of 500V AC/DC.

  • DC Cold Resistance: 0.0048 Ohms
  • Current Rating: 25A
  • Breaking Capacity: 30kA AC, 20kA DC @ rated voltage
  • Package Size: 3AB, 3AG, 1/4" x 1-1/4"
  • Packing: Bulk (1000 units)
  • Approvals: CE, cULus
  • Operating Temperature: -55°C to 125°C
  • Melting I2t: 145
