Same model may have multiple batches, images only for reference.

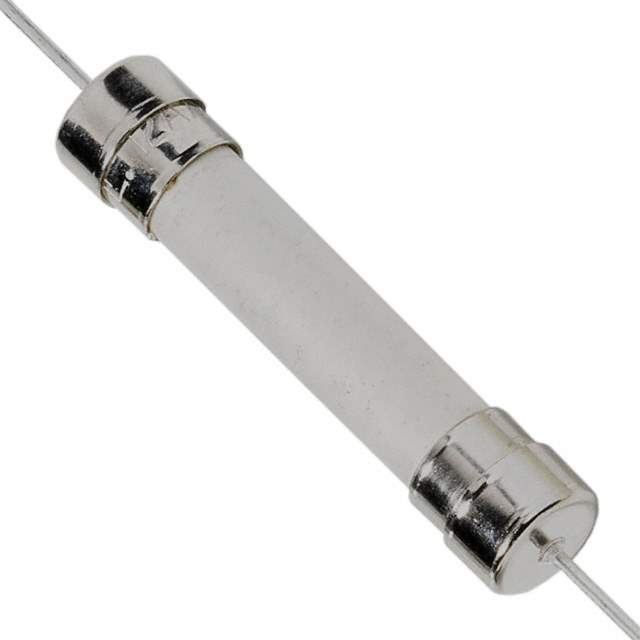

0505016.MXEP Real Image
Same model may have multiple batches, images only for reference.

0505016.MXEP

Part No 0505016.MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 16A 500VAC/VDC 3AB / Axial Lead & Cartridge Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 16A
Voltage Rating - AC 500V
Voltage Rating - DC 500V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 50kA AC, 20kA DC
Melting I2t 51
Approvals CE, cULus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.0073 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808589-0505016.MXEP
Ultra Librarian 3D Model Ultra Librarian 0505016.MXEP CAD Model

Description

Littelfuse Inc. presents a cartridge ceramic fuse that has a fast blow response time.

  • Current Rating: 16A
  • Voltage Rating: 500V AC, 500V DC
  • Mounting Style: Through-hole
  • Temperature Range: -55°C ~ 125°C
  • Dimension: 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
  • Breaking Capacity @ Rated Voltage: 50kA AC, 20kA DC
  • Approvals: CE, cULus
  • Manufacturer Package: 3AB, 3AG, 1/4" x 1-1/4" (Axial)
  • Manufacturer Pack Quantity: 1,000
