Same model may have multiple batches, images only for reference.

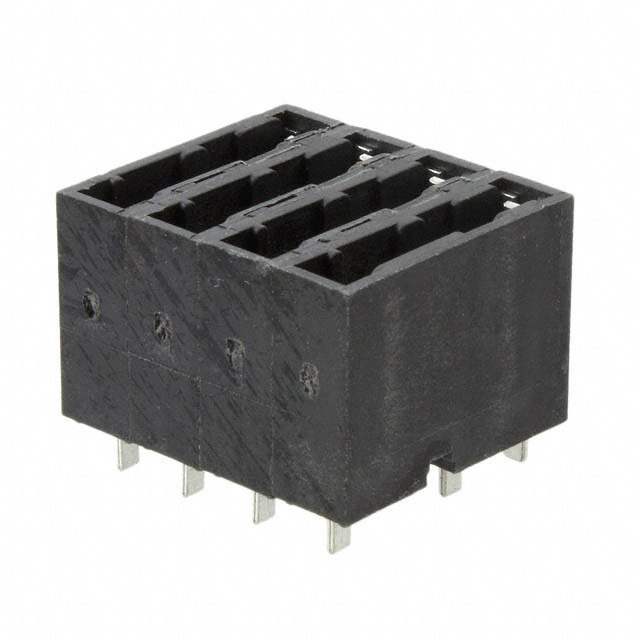

04820004ZXBF Littelfuse Inc.
Same model may have multiple batches, images only for reference.

04820004ZXBF

Part No 04820004ZXBF
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HOLDER BLADE 125V 15A PCB
Datasheet
04820004ZXBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Part Status Active
Mounting Type Through Hole
Fuse Size 0.665" L x 0.315" W x 0.772" H (16.9mm x 8mm x 19.6mm)
Current Rating (Amps) 15 A
For Use With/Related Products 481 Alarm Fuse
Fuse Type Blade
Fuseholder Type Holder
Number of Circuits 4
Voltage 125V
Ultra Librarian 3D Model Ultra Librarian 04820004ZXBF CAD Model

Description

Ideal for telecommunications and control panel circuits, the 482 Series fuseholder is designed for use with Littelfuse 481 Alarm Indicating Fuses. Each holder is designed to accept other manufacturers’ replacement fuses as well.
