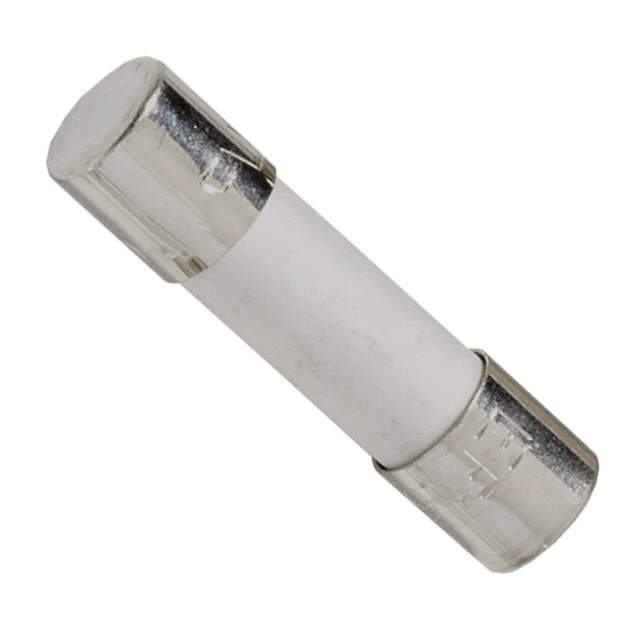

04773.15MXP Real Image
Same model may have multiple batches, images only for reference.

04773.15MXP

Part No 04773.15MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 3.15A 500VAC 400VDC / Axial Lead & Cartridge Fuses 5×20 mm > Time-Lag > 477 Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 3.15A
Voltage Rating - AC 500V
Voltage Rating - DC 400V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 100A AC, 1.5kA DC
Melting I2t 50.109
Approvals cULus, PSE, SEMKO, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0277 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802659-04773.15MXP
Ultra Librarian 3D Model Ultra Librarian 04773.15MXP CAD Model

Description

The 04773.15MXP is a ceramic cartridge fuse manufactured by Littelfuse Inc.

  • Voltage Rating: 500V (AC), 400V (DC)
  • Response Time: Slow Blow
  • Current Rating: 3.15A
  • Package: 5mm x 20mm
  • Breaking Capacity @ Rated Voltage: 100A AC, 1.5kA DC
