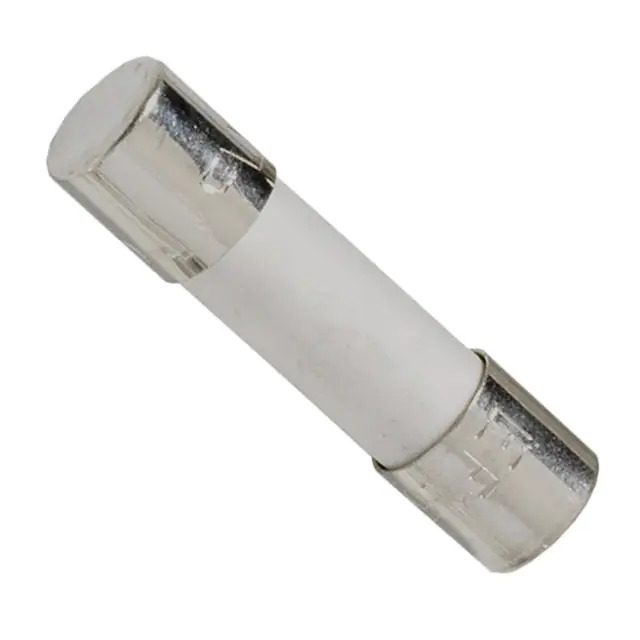

0477004.MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0477004.MXP

Part No 0477004.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 4A 500VAC 400VDC 5X20 / 4 A 500 V AC 400 V DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
Datasheet
0477004.MXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 477
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 4 A
Voltage Rating - AC 500 V
Voltage Rating - DC 400 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 100A AC, 500A DC
Melting I²t 52.48
Approval Agency cULus, PSE, SEMKO
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0172 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361289-0477004.MXP
Ultra Librarian 3D Model Ultra Librarian 0477004.MXP CAD Model

Description

The Littelfuse Inc. Circuit Protection - Fuse is a high-quality electronic component designed to provide reliable protection for various electrical circuits.

  • Current Rating: 4A
  • Voltage Rating: 500V AC/400V DC
  • Response Time: Slow Blow
  • Breaking Capacity (AC): 100A AC @ Rated Voltage
  • Breaking Capacity (DC): 500A DC @ Rated Voltage
  • Mounting Type: Holder
  • Package/Case: 5mm x 20mm
  • Approvals: cULus, PSE, SEMKO
