Same model may have multiple batches, images only for reference.

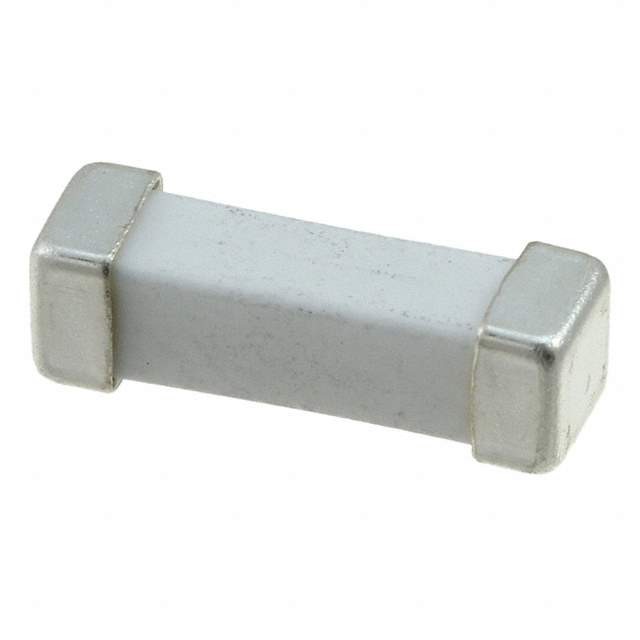

0463025.ER Real Image
Same model may have multiple batches, images only for reference.

0463025.ER

Part No 0463025.ER
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE V/FAST 250V NANO2 25A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 25A
Voltage Rating - AC 250V
Voltage Rating - DC 100V
Response Time Fast Blow
Manufacturer Package 2-SMD, Square End Block
Mounting Style SMD
Breaking Capacity at Rated Voltage 100A AC, 50A DC
Melting I2t 668
Approvals cURus
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm)
DC Cold Resistance 0.00215 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 728594-0463025.ER
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0463025.ER CAD Model

Description

The Littelfuse Inc. board mount fuse is a circuit protection component designed to protect electronic devices from overcurrent. With a voltage rating of 250V AC and 100V DC, this fuse is suitable for use in a variety of electronic systems.

  • Packaging: Reel
  • Mount Style: SMD
  • Response Time: Fast Blow
  • Melting I2t: 668
  • Approvals: cURus
  • Operating Temperature Range: -55°C ~ 125°C
  • Manufacturer Package: 2-SMD, square end block
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • HTSUS Code: 8536.10.0040
