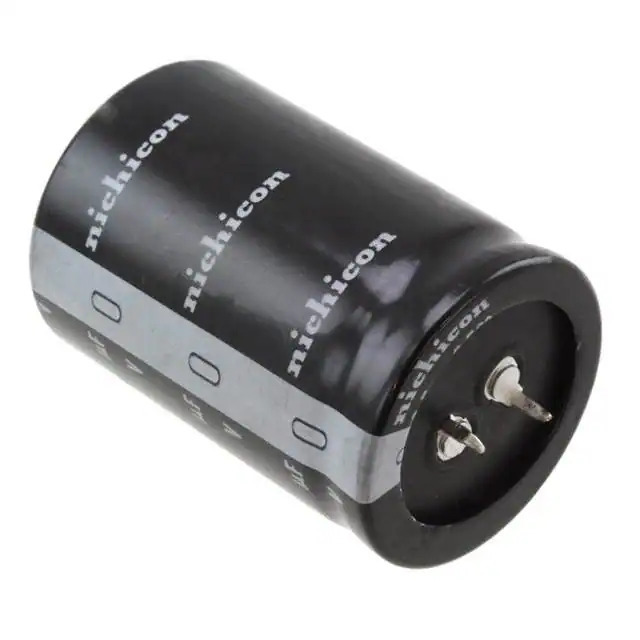

LLG2C392MELC50 Nichicon
Same model may have multiple batches, images only for reference.

LLG2C392MELC50

Part No LLG2C392MELC50
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 3900UF 20% 160V SNAP / 3900 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
Datasheet
LLG2C392MELC50 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LLG
Package Bulk
Product Status Active
Capacitance 3900 µF
Tolerance ±20%
Voltage - Rated 160 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 6 A @ 120 Hz
Ripple Current @ High Frequency 9 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360724-LLG2C392MELC50
Ultra Librarian 3D Model Ultra Librarian LLG2C392MELC50 CAD Model

Description

The LLG2C392MELC50 is an aluminum electrolytic capacitor manufactured by Nichicon.

  • Series: LLG
  • Application: General Purpose
  • Capacitance: 3900 µF
  • Voltage Rating: 160 V
  • Temperature Range: -40°C to 85°C
  • Lifetime: 2000 hours @ 85°C
  • Package: Radial, Can - Snap-In
  • Mounting Type: Through Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Size/Dimension: 1.378" Dia (35.00mm)
  • Ripple Current (Low Frequency): 6 A @ 120 Hz
  • Ripple Current (High Frequency): 9 A @ 50 kHz
  • Polarization: Required
