Same model may have multiple batches, images only for reference.

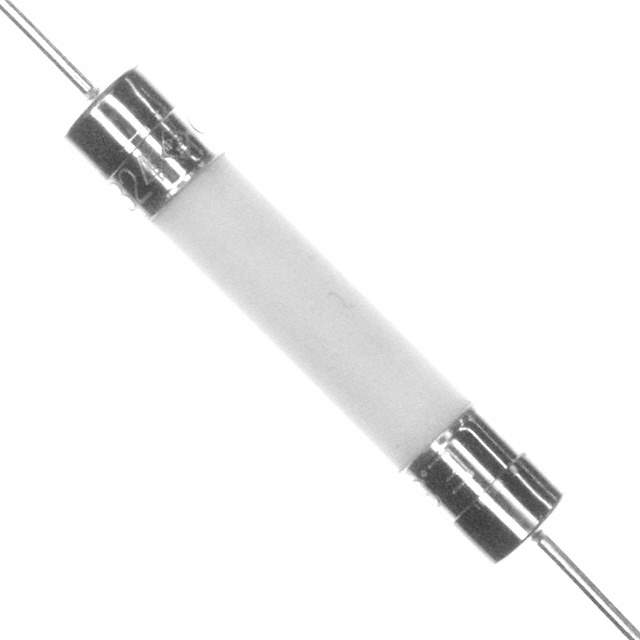

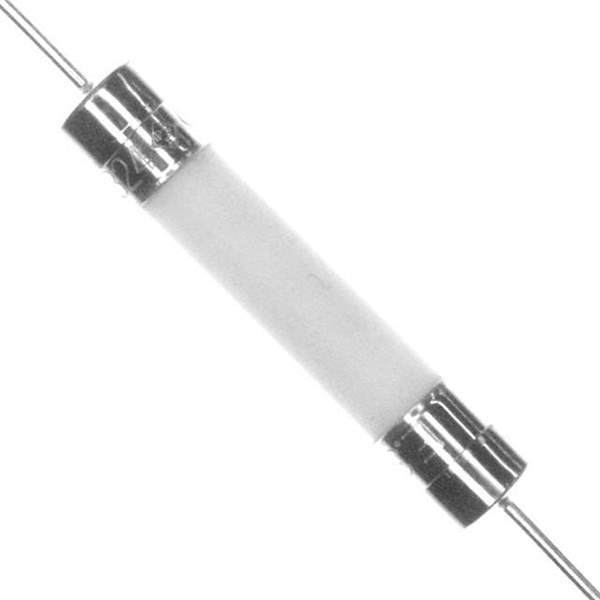

0324040.MXP Real Image
Same model may have multiple batches, images only for reference.

0324040.MXP

Part No 0324040.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 40A 250VAC 150VDC 3AB / 40 A 250 V AC 150 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 324
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 40 A
Voltage Rating - AC 250 V
Voltage Rating - DC 150 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 1kA AC, 400A DC
Melting I2t 22925
Approval Agency CE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.0014 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names 324040.MXP,-0324040.MXP,0324040MXP,0324040.MXP-ND,F4846
Standard Package 1,000
Win Source Part Number 1002312-0324040.MXP
Ultra Librarian 3D Model Ultra Librarian 0324040.MXP CAD Model

Description

The 1002312-0324040.MXP is a fast blow cartridge ceramic fuse from Littelfuse Inc. with a voltage rating of 250 V AC and 150 V DC.

  • Manufacturer: Littelfuse Inc.
  • Voltage Rating: 250 V AC and 150 V DC
  • Breaking Capacity @ Rated Voltage: 1kA AC and 400A DC
  • DC Cold Resistance: 0.0014 Ohms
  • Package: 3AB, 3AG, 1/4" x 1-1/4" (Axial)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 40 A
  • Dimension: 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
