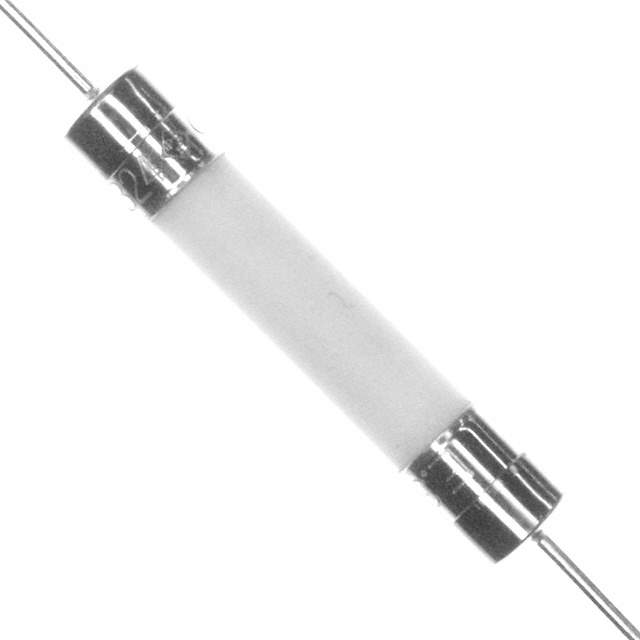

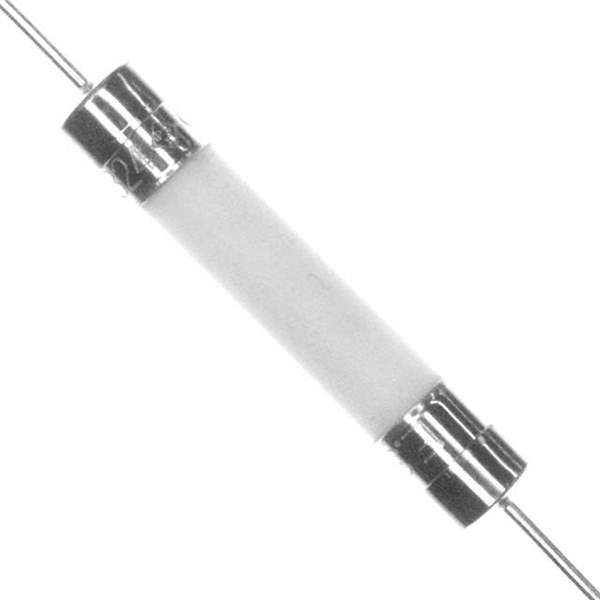

0324010.MXP Real Image
Same model may have multiple batches, images only for reference.

0324010.MXP

Part No 0324010.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 10A 250VAC 125VDC 3AB / 314/324 Series Lead-free 3AB, Fast-acting Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 10A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Fast Blow
Manufacturer Package 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 750A AC, 10kA DC
Melting I2t 206
Approvals CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.0105 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801694-0324010.MXP
Ultra Librarian 3D Model Ultra Librarian 0324010.MXP CAD Model

Description

This Ceramic fuse is from Littelfuse Inc..

  • Voltage Rating (AC): 250V
  • Voltage Rating (DC): 125V
  • Current Rating: 10A
  • Breaking Capacity (AC): 750A
  • Breaking Capacity (DC): 10kA
  • Blow Speed: Fast-Blow
  • DC Cold Resistance: 0.0105 Ohms
  • Melting I2t: 206
  • Approvals: CE, CSA, K-MARK, PSE, UL
  • Temperature Range: -55°C ~ 125°C
  • Mounting: Through Hole
  • Manufacturer Package: 3AB, 3AG, 1/4" x 1-1/4" (Axial)
  • Manufacturer Pack Quantity: 1,000
