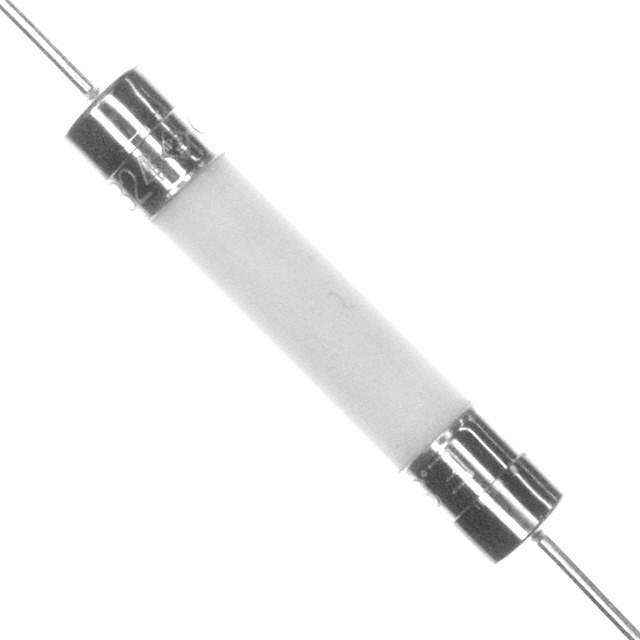

Same model may have multiple batches, images only for reference.

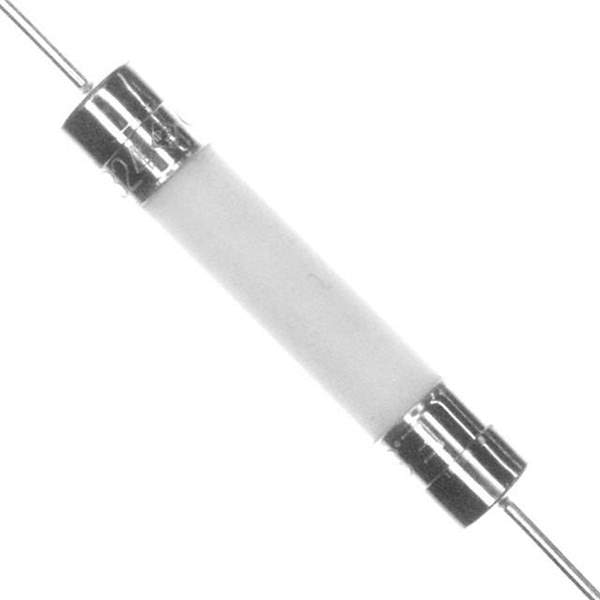

0324005.MXP Real Image
Same model may have multiple batches, images only for reference.

0324005.MXP

Part No 0324005.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 5A 250VAC 125VDC 3AB / 5 A 250 V AC 125 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 324
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 750A AC, 10kA DC
Melting I2t 26
Approval Agency CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.03 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names -0324005.MXP
Standard Package 1,000
Win Source Part Number 970936-0324005.MXP
Ultra Librarian 3D Model Ultra Librarian 0324005.MXP CAD Model

Description

The electronic component with Win Source Part Number 970936-0324005.MXP is a ceramic cartridge fuse that belongs to the series 324.

  • Win Source Part Number: 970936-0324005.MXP
  • Series: 324
  • Category: Circuit Protection
  • Voltage Rating: 250V AC and 125V DC
  • Response Time: Fast Blow
  • Breaking Capacity @ Rated Voltage: 750A AC, 10kA DC
  • Melting I2t: 26
  • DC Cold Resistance: 0.03 Ohms
  • Standard Package: 1,000
  • Mounting Type: Through-Hole
  • Dimension: 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
  • Approvals: CE, CSA, K-MARK, PSE, UL
