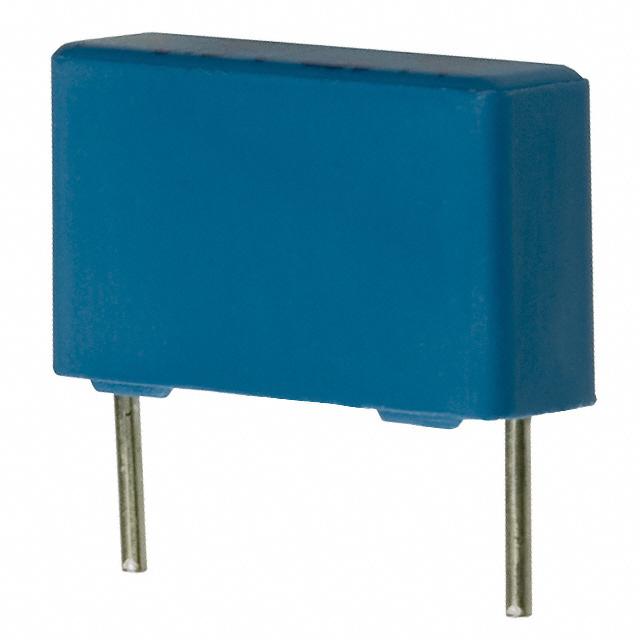

B32022A3103M EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32022A3103M

Part No B32022A3103M
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 10000PF 20% 1.5KVDC RAD
Datasheet
B32022A3103M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Packaging AMMO PACKAGE
Status Active
Capacitance 10000pF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1500V (1.5kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C to 110°C
Mounting Through Hole
Dimension 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications EMI, RFI Suppression
Features Y2 Safety Rated
Win Source Part Number 000015-B32022A3103M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B32022A3103M CAD Model

Description

B32022A3103M Film Capacitor

The B32022A3103M is a high-performance film capacitor optimized for resonant circuits and coupling applications, ensuring minimal energy loss and enhanced efficiency.

  • Applications: Resonant circuits, Coupling applications, Audio crossover networks
  • Features and Benefits: High resonance frequency, Low equivalent series resistance (ESR), High voltage withstanding capability
  • Additional Details: Rated capacitance of 10000pF, Voltage rating of 250V, Temperature range: -55°C to +125°C
