0314020.HXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0314020.HXP

Part No 0314020.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses

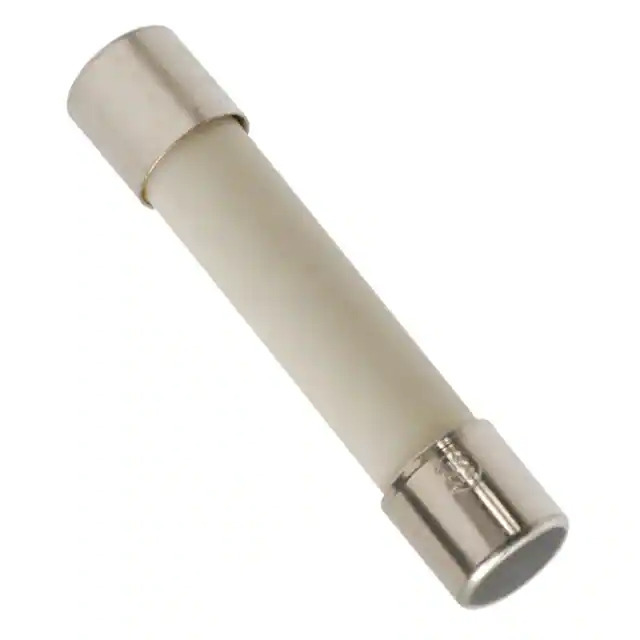

Description FUSE CERM 20A 250VAC 125VDC 3AB / 20 A 250 V AC 125 V DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 314
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 20 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 200A AC, 10kA DC
Melting I²t 631
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.00355 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1356676-0314020.HXP
Ultra Librarian 3D Model Ultra Librarian 0314020.HXP CAD Model

Description

The 314 series from Littelfuse Inc. is a range of fuses designed for circuit protection.

  • Series: 314
  • Fuse Type: Cartridge
  • Packaging: Bulk
  • Size: 3AB, 3AG, 1/4" x 1-1/4"
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 20A
  • Voltage Rating (AC): 250V
  • Voltage Rating (DC): 125V
  • Speed: Fast Blow
  • Breaking Capacity (AC): 200A @ Rated Voltage
  • Breaking Capacity (DC): 10kA @ Rated Voltage
  • Approvals: CE, CSA, PSE, UL
