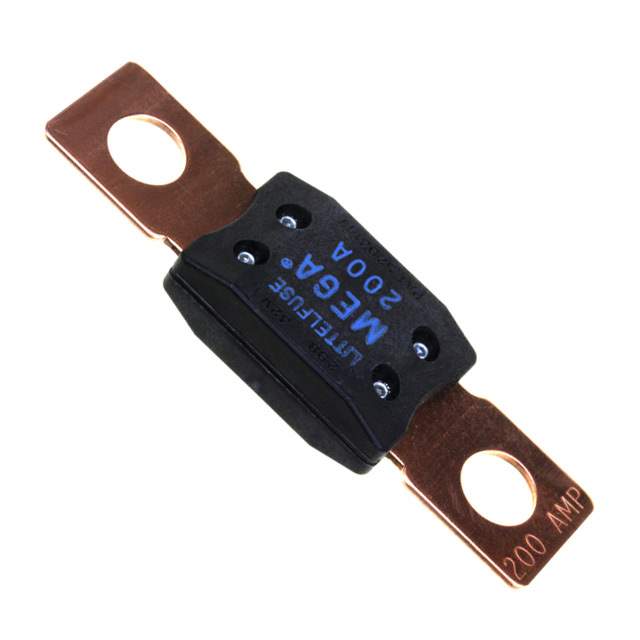

0298200.ZXEH Real Image
Same model may have multiple batches, images only for reference.

0298200.ZXEH

Part No 0298200.ZXEH
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 200A 32VDC AUTO LINK / MEGA Fuse Rated 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 200A
Voltage Rating - DC 32V
Response Time Slow Blow
Manufacturer Package Auto Link
Mounting Style Bolt Mount
Breaking Capacity at Rated Voltage 2kA
Melting I2t 204000
Approvals UL
Temperature Range - Operating -40°C ~ 125°C
Color Blue
Dimension 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm)
DC Cold Resistance 0.000257 Ohms
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806333-0298200.ZXEH
Ultra Librarian 3D Model Ultra Librarian 0298200.ZXEH CAD Model

Description

The 806333-0298200.ZXEH is an automotive fuse from Littelfuse Inc. that has a mounting style of bolt mount.

  • Response Time: Slow-blow
  • Voltage Rating: 32V DC
  • Current Rating: 200A
  • Breaking Capacity: 2kA @ rated voltage
  • DC Cold Resistance: 0.000257 Ohms
  • Melting I2t: 204000
  • Manufacturer Package: Auto Link
  • Dimension: 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm)
  • Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 500
