Same model may have multiple batches, images only for reference.

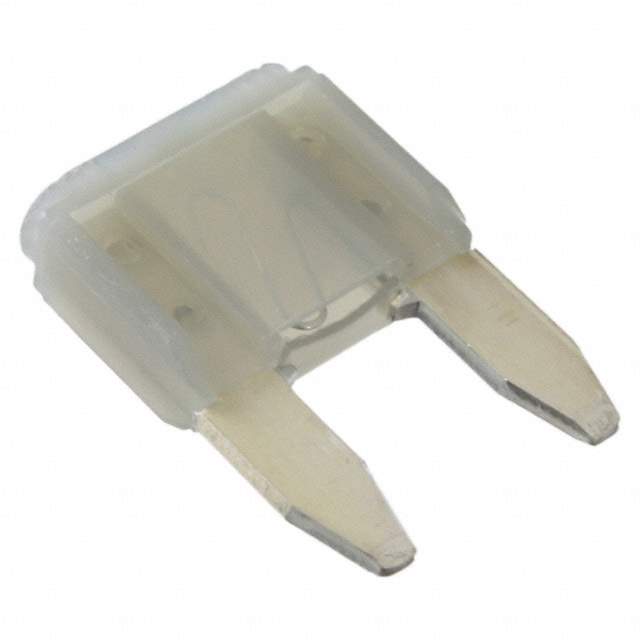

0297002.WXNV Real Image
Same model may have multiple batches, images only for reference.

0297002.WXNV

Part No 0297002.WXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 2A 32VDC BLADE MINI / MINI® BLADE FUSE RATED 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 2A
Voltage Rating - DC 32V
Response Time Fast Blow
Manufacturer Package Blade, Miniature
Mounting Style Holder
Breaking Capacity at Rated Voltage 1kA
Melting I2t 2.8
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Dimension 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
DC Cold Resistance 0.0556 Ohms
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803067-0297002.WXNV
Ultra Librarian 3D Model Ultra Librarian 0297002.WXNV CAD Model

Description

The Littelfuse Inc. The supply and demand status of this product is balanced. The fuse has a voltage rating - DC of 32V and a current rating (Amps) of 2A.

  • Voltage Rating - DC: 32V
  • Current Rating (Amps): 2A
  • Response Time: Fast Blow
  • DC Cold Resistance: 0.0556 Ohms
  • Dimension: 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
  • Packaging: Bulk
  • Manufacturer Package: Blade, Miniature
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
  • Breaking Capacity @ Rated Voltage: 1kA
