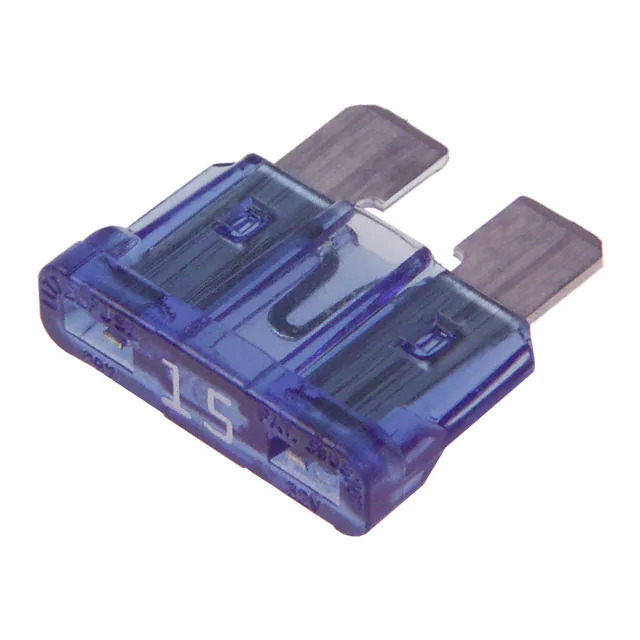

0257015.PXPV Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0257015.PXPV

Part No 0257015.PXPV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 15A 32VDC BLADE ATO / 15 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series ATO®
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Automotive
Current Rating (Amps) 15 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case Blade, ATO/ATC
Breaking Capacity @ Rated Voltage 1kA
Melting I²t 340
Approval Agency -
Color Blue
Size / Dimension 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm)
DC Cold Resistance 0.0048 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 1361544-0257015.PXPV
Ultra Librarian 3D Model Ultra Librarian 0257015.PXPV CAD Model

Description

The 1361544-0257015.PXPV is an obsolete ATO® blade fuse from Littelfuse Inc.

  • Package Size: 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm)
  • Current Rating: 15A
  • Voltage Rating: 32V DC
  • Fuse Type: Fast Blow
  • Breaking Capacity: 1kA
  • Melting I²t Value: 340
  • DC Cold Resistance: 0.0048 Ohms
  • Mounting: Holder
  • Application: Automotive
  • Product Status: Obsolete
