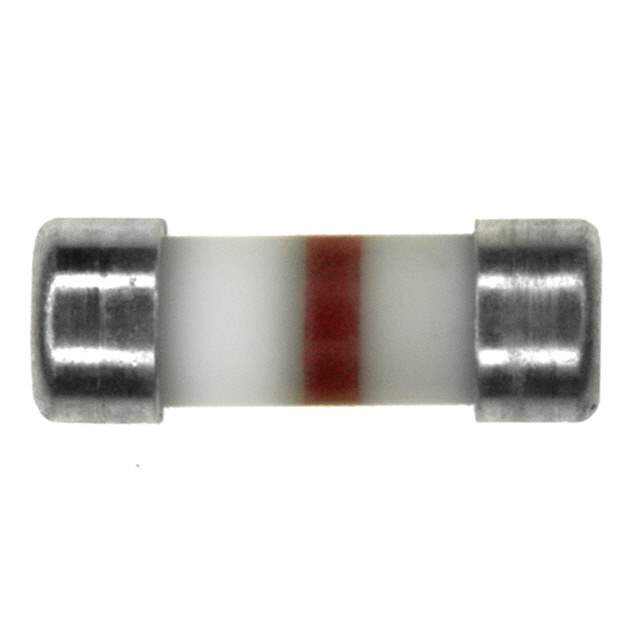

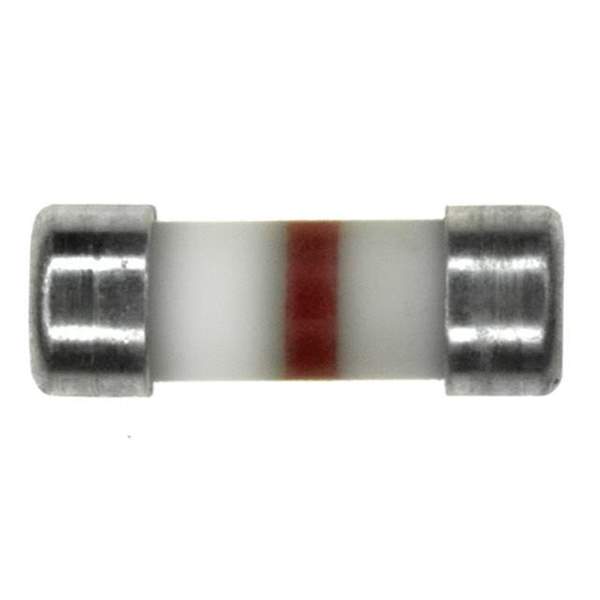

0242.200UR Real Image
Same model may have multiple batches, images only for reference.

0242.200UR

Part No 0242.200UR
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 200MA 250VAC/VDC / 200mA 250 V AC 250 V DC Fuse Cartridge Surface Mount
Datasheet
0242.200UR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series 242
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Cartridge
Current Rating (Amps) 200mA
Voltage Rating - AC 250 V
Voltage Rating - DC 250 V
Response Time Fast Blow
Applications Hazardous Locations
Features Intrinsically Safe
Approval Agency cURus
Temperature Range - Operating -40°C ~ 125°C
Breaking Capacity @ Rated Voltage 4kA
Package / Case Cartridge, Non-Standard
Dimension 0.119" Dia x 0.331" L (3.02mm x 8.40mm)
Melting I2t 0.0038
DC Cold Resistance 2.68 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0242200UR,242.200UR,F1866TR,F1866DKR,0242.200UR-ND,F1866CT
Standard Package 500
Win Source Part Number 1135046-0242.200UR
Ultra Librarian 3D Model Ultra Librarian 0242.200UR CAD Model

Description

The 242 series cartridge fuse is an intrinsically safe fuse that is designed for use in hazardous locations.

  • Voltage Rating: 250V AC and DC
  • Breaking Capacity: 4kA
  • Melting I2t: 0.0038
  • DC Cold Resistance: 2.68 Ohms
  • Mounting: SMD (SMT) technology
  • Package/Case: Non-standard cartridge
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.119” Dia x 0.331” L (3.02mm x 8.40mm)
  • Approval Agency: cURus
  • Standard Package: 500
