Same model may have multiple batches, images only for reference.

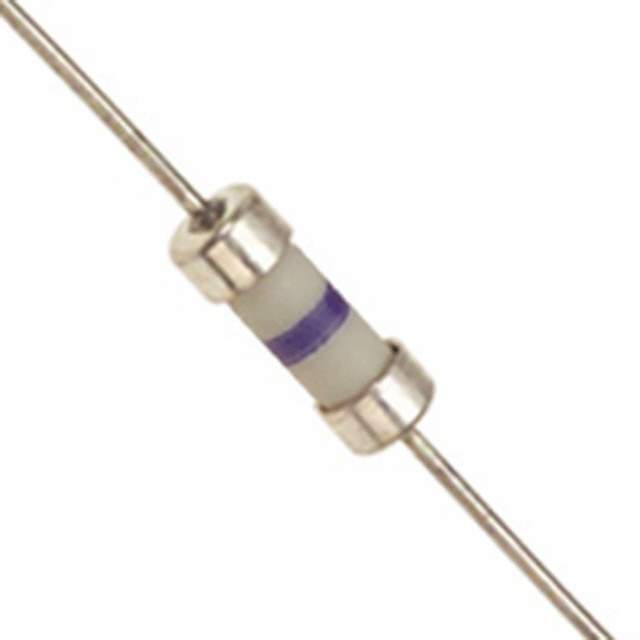

0242.100UAT1 Real Image
Same model may have multiple batches, images only for reference.

0242.100UAT1

Part No 0242.100UAT1
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 100MA 250VAC/DC AXL  /  100mA 250 V AC 250 V DC Fuse Cartridge Through Hole
Datasheet
0242.100UAT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series 242
Package Tape & Reel (TR),Cut Tape (CT)
Mounting Type Through Hole
Fuse Type Cartridge
Current Rating (Amps) 100mA
Voltage Rating - AC 250 V
Voltage Rating - DC 250 V
Response Time Fast Blow
Applications Hazardous Locations
Features Intrinsically Safe
Approval Agency cURus
Temperature Range - Operating -40°C ~ 125°C
Breaking Capacity @ Rated Voltage 4kA
Package / Case Axial
Dimension 0.119" Dia x 0.331" L (3.02mm x 8.40mm)
Melting I2t 0.000977
DC Cold Resistance 3.6 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0242.100,F1292TB,F1292TR,0242100UAT1,F1292CT
Standard Package 500
Win Source Part Number 1177683-0242.100UAT1
Ultra Librarian 3D Model Ultra Librarian 0242.100UAT1 CAD Model

Description

The Littelfuse Inc. electronic component is an electrical, specialty fuse with a series of 242.

  • Voltage Rating - AC and DC: 250V
  • Response Time: Fast blow
  • Breaking Capacity @ Rated Voltage: 4kA
  • Melting I2t: 0.000977
  • Current Rating (Amps): 100mA
  • Package: Tape & reel (TR), cut tape (CT)
  • Standard Package: 500
  • Application: Hazardous locations
