Same model may have multiple batches, images only for reference.

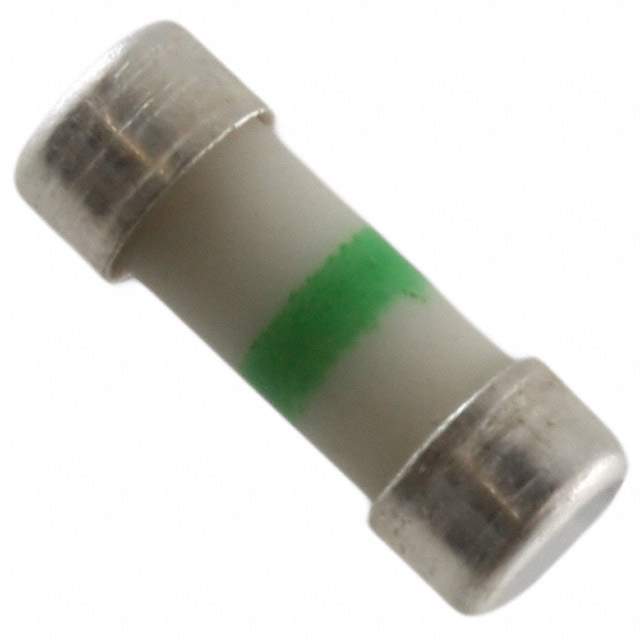

0242.080UR Real Image
Same model may have multiple batches, images only for reference.

0242.080UR

Part No 0242.080UR
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 80MA 250VAC/VDC / 80mA 250 V AC 250 V DC Fuse Cartridge Surface Mount
Datasheet
0242.080UR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series 242
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Cartridge
Current Rating (Amps) 80mA
Voltage Rating - AC 250 V
Voltage Rating - DC 250 V
Response Time Fast Blow
Applications Hazardous Locations
Features Intrinsically Safe
Approval Agency cURus
Temperature Range - Operating -40°C ~ 125°C
Breaking Capacity @ Rated Voltage 4kA
Package / Case Cartridge, Non-Standard
Dimension 0.119" Dia x 0.331" L (3.02mm x 8.40mm)
Melting I2t 0.000214
DC Cold Resistance 8.19 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0242.080UR-ND,0242080UR,F1864DKR,242.080UR,F1864TR,F1864CT
Standard Package 500
Win Source Part Number 1127777-0242.080UR
Ultra Librarian 3D Model Ultra Librarian 0242.080UR CAD Model

Description

The 0242.080UR is a fast blow cartridge fuse from Littelfuse Inc.

  • Fuse Type: Intrinsically Safe
  • Voltage Rating: 250V AC/DC
  • Breaking Capacity: 4kA
  • Current Rating: 80mA
  • DC Cold Resistance: 8.19 Ohms
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.119" Dia x 0.331" L (3.02mm x 8.40mm)
