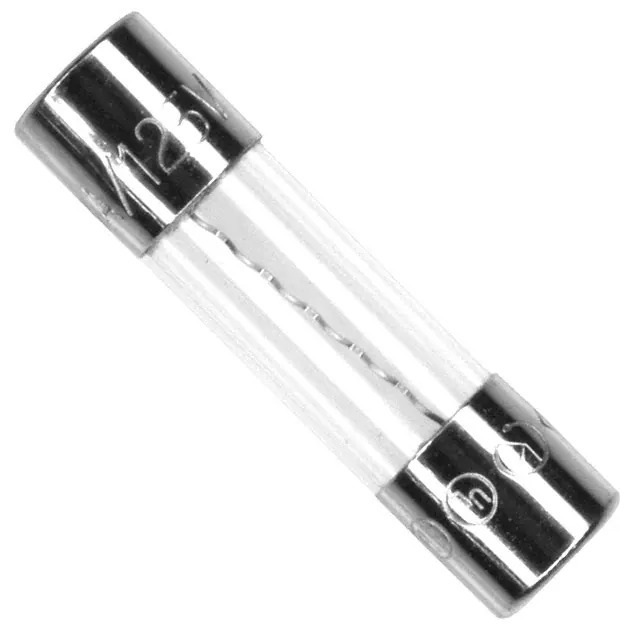

Same model may have multiple batches, images only for reference.
0232005.MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0232005.MXP

Part No 0232005.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 5A 250VAC 5X20MM / 5 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 232
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Response Time Medium Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 100A
Melting I²t 56.72
Approval Agency CE, KC, PSE
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0134 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361301-0232005.MXP
Ultra Librarian 3D Model Ultra Librarian 0232005.MXP CAD Model

Description

The 1361301-0232005.MXP is a cartridge glass fuse manufactured by Littelfuse Inc. It belongs to the 232 series of fuses, which are designed for circuit protection.

  • Current Rating: 5 Amps
  • Voltage Rating: 250V AC
  • Fuse Type: Medium Blow
  • Breaking Capacity: 100A @ its rated voltage
  • Size: 5mm x 20mm
  • Mounting: Requires a holder
  • Packaging: Bulk
  • Status: Active
  • Approvals: CE, KC, and PSE
  • DC Cold Resistance: 0.0134 Ohms
