Same model may have multiple batches, images only for reference.

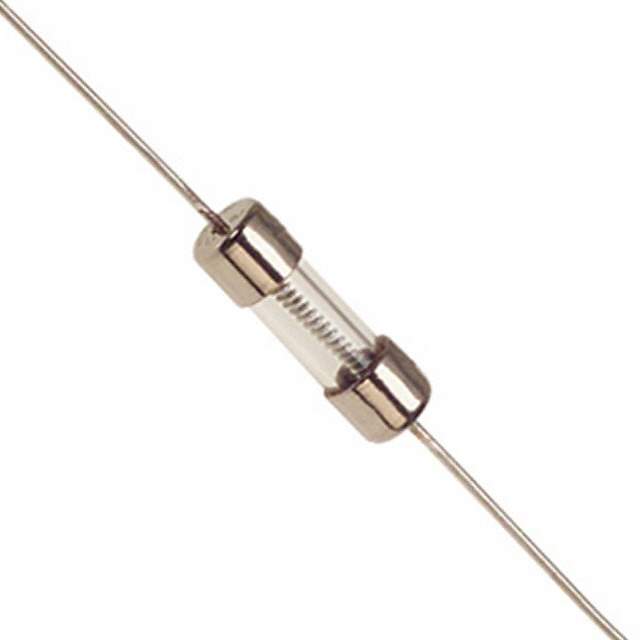

0230005.HXP Real Image
Same model may have multiple batches, images only for reference.

0230005.HXP

Part No 0230005.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse | FUSE GLASS 5A 125VAC/VDC AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Glass
Current Rating (Amps) 5A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Slow Blow
Manufacturer Package Cartridge, Non-Standard (Axial)
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 400A
Melting I2t 267
Approvals CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance 0.0186 Ohms
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1120543-0230005.HXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0230005.HXP CAD Model

Description

The electronic component with Id 597833 is a cartridge glass fuse manufactured by Littelfuse Inc.

  • Win Source Part Number: 1120543-0230005.HXP
  • Mounting: Through-Hole
  • Voltage Rating (AC and DC): 125V
  • Response Time: Slow Blow
  • Melting I2t: 267
  • Supply and Demand Status: Limited
