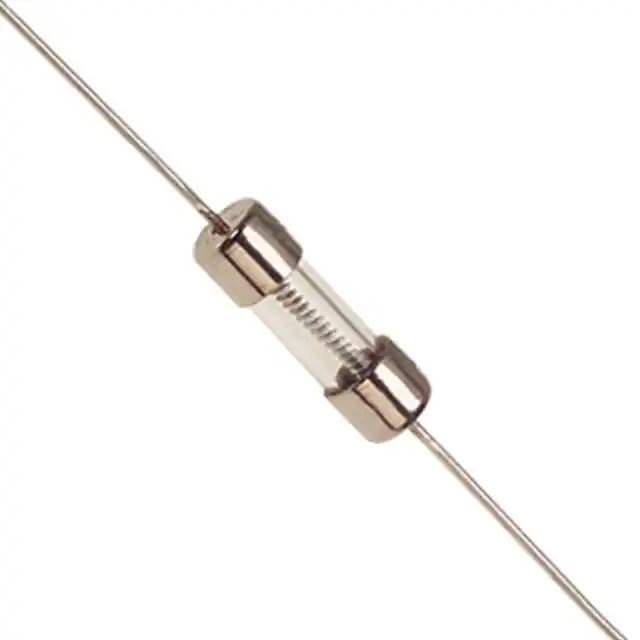

0230003.DRT1P Real Image
Same model may have multiple batches, images only for reference.

0230003.DRT1P

Part No 0230003.DRT1P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3A 250VAC 125VDC AXL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 230
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 3 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case Cartridge, Non-Standard (Axial)
Breaking Capacity @ Rated Voltage 35A AC, 10kA DC
Melting I2t 77
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance 0.0383 Ohms
Standard Package 1,500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
California Prop 65 Warning Information
Win Source Part Number 853150-0230003.DRT1P
Ultra Librarian 3D Model Ultra Librarian 0230003.DRT1P CAD Model

Description

The 853150-0230003.DRT1P is a glass cartridge fuse designed for circuit protection.

  • Voltage Rating: 250V AC and 125V DC
  • Fuse Type: Slow Blow
  • Breaking Capacity: 35A AC and 10kA DC
  • Current Rating: 3A
  • DC Cold Resistance: 0.0383 Ohms
  • Mounting Type: Through-Hole
  • Package: Non-Standard Axial
  • Series: 230
  • Manufacturer: Littelfuse Inc.
