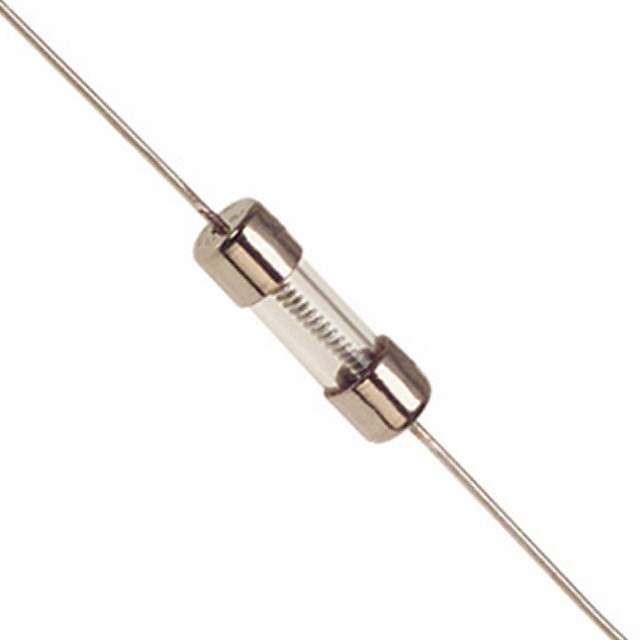

0230002.DRT3P Real Image
Same model may have multiple batches, images only for reference.

0230002.DRT3P

Part No 0230002.DRT3P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 2A 250VAC/125VDC AXL / 2 A 250 V AC 125 V DC Fuse Cartridge, Glass Through Hole Cartridge, Non-Standard (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 230
Package Tape & Reel (TR)
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 2 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case Cartridge, Non-Standard (Axial)
Breaking Capacity @ Rated Voltage 35A AC, 10kA DC
Melting I2t 30
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance 0.0698 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0020
Other Names -0230002.DRT3P,230002T3P,230002.T3P
Standard Package 1,500
Win Source Part Number 990996-0230002.DRT3P
Ultra Librarian 3D Model Ultra Librarian 0230002.DRT3P CAD Model

Description

The Littelfuse Inc. 230 series cartridge glass fuse component has a voltage rating of 250V AC and 125V DC.

  • Response Time: Slow Blow
  • Breaking Capacity @ Rated Voltage: 35A AC and 10kA DC
  • Current Rating: 2A
  • DC Cold Resistance: 0.0698 Ohms
  • Series: 230
  • Operating Temperature Range: -55°C to 125°C
  • Package: Tape and Reel
  • Package/Case: Non-Standard Cartridge Axial
  • Introduction Date: Not Available
  • Approvals: CE, CSA, PSE, and UL
