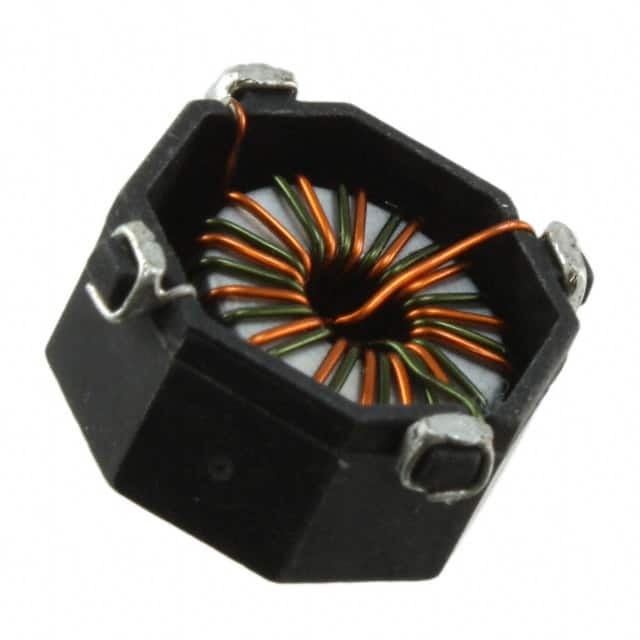

CTX20-4A-R

Name: CTX20-4A-R
Brand: Eaton Bussmann
SKU: 1001754
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CTX20-4A-R
Manufacturer	Eaton Bussmann
Catalog	Arrays, Signal Transformers
Description	INDUCT ARRAY 2 COIL 19.58UH SMD / Unshielded 2 Coil Inductor Array 78.3 µH Inductance - Connected in Series 19.58 µH Inductance - Connected in Parallel 34mOhm Max DC Resistance (DCR) - Parallel 3.62 A Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr	Eaton - Electronics Division
Series	OCTA-PAC® PLUS
Package	Tape & Reel
Number of Coils	2
Inductance - Connected In Parallel	19.58 µH
Inductance - Connected In Series	78.3 µH
Tolerance	±25%
Current Rating - Parallel	3.62 A
Current Rating - Series	1.81 A
Current Saturation - Parallel	3 A
Current Saturation - Series	1.5 A
DC Resistance (DCR) - Parallel	34mOhm Max
DC Resistance (DCR) - Series	135mOhm Max
Shielding	Unshielded
Temperature Range - Operating	-40°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height	0.250" (6.35mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	513-1797-6,CTX20-4A-R-ND,CTX204AR,513-1797-2,513-1797-1
Standard Package	600
Win Source Part Number	1001754-CTX20-4A-R
Ultra Librarian 3D Model	Ultra Librarian CTX20-4A-R CAD Model

Description

The Eaton - Electronics Division CTX20-4A-R OCTA-PAC® PLUS inductor array consists of two coils with a connected in series inductance of 78.3 µH and a connected in parallel inductance of 19.58 µH.

Series Inductance: 78.3 µH
Parallel Inductance: 19.58 µH
Series Current Rating: 1.81 A
Parallel Current Rating: 3.62 A
Series Current Saturation: 1.5 A
Parallel Current Saturation: 3 A
Series DCR: 135mOhm Max
Parallel DCR: 34mOhm Max
Package: Nonstandard package
Operating Temperature: -40°C to 85°C
