Same model may have multiple batches, images only for reference.

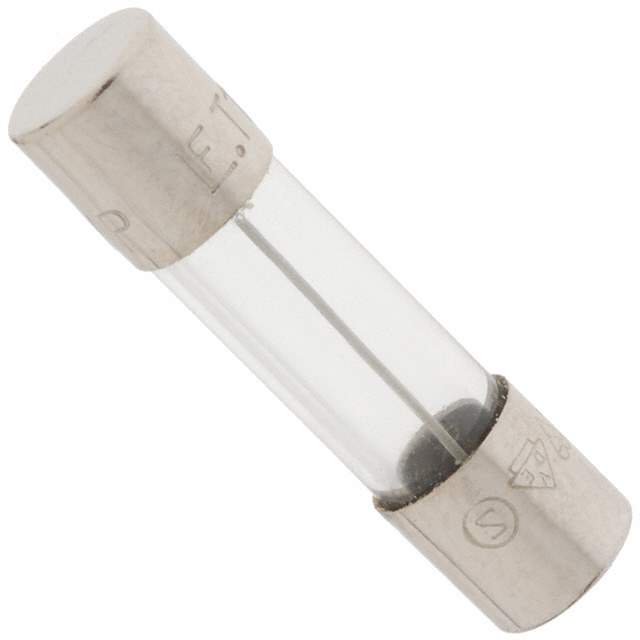

0217015.MXP Real Image
Same model may have multiple batches, images only for reference.

0217015.MXP

Part No 0217015.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 15A 250VAC 5X20MM / 15 A 250 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 217
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 15 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 150A
Melting I2t 607.135
Approval Agency CE, PSE, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.004 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Names F1728,-1024-0217015.MXP,217015.MXP,217015MXP,0217015.MXP-ND,0217015MXP
Standard Package 1,000
Win Source Part Number 1006969-0217015.MXP
Ultra Librarian 3D Model Ultra Librarian 0217015.MXP CAD Model

Description

The Littelfuse Inc. 0217015.MXP is a glass cartridge fuse that is designed to protect electronic circuits from overcurrent and short circuit faults.

  • Voltage Rating: 250V AC
  • Current Rating: 15A
  • Response Time: Fast Blow
  • Series: 217
  • Breaking Capacity @ Rated Voltage: 150A
  • Melting I2t: 607.135
  • DC Cold Resistance: 0.004 Ohms
  • Approvals: CE, PSE, and VDE
