Same model may have multiple batches, images only for reference.

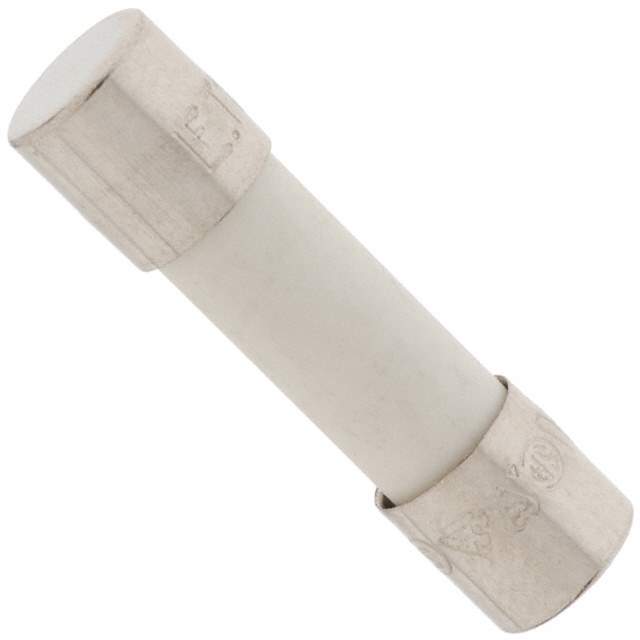

0216010.MXP Real Image
Same model may have multiple batches, images only for reference.

0216010.MXP

Part No 0216010.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 216 Series, 5 x 20 mm, Fast-Acting Fuse
Datasheet
0216010.MXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series 216
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating 10A
Voltage Rating - AC 250V
Response Time Fast
Package 5mm x 20mm
Mounting Holder
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 154.34
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Operating Temperature Range -55°C ~ 125°C
Size 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
Resistance 0.0079 Ohm
Win Source Part Number 1120515-0216010.MXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Family Name 216
Introduction Date July 02, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian 0216010.MXP CAD Model

Description

This electronic component is a cartridge ceramic fuse manufactured by Littelfuse Inc.

  • Category: Circuit Protection
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Win Source Part Number: 1120515-0216010.MXP
  • Current Rating: 10A
  • Voltage Rating - AC: 250V
  • Response Time: fast
  • Breaking Capacity @ rated voltage: 1.5kA
  • Halogen-Free Compliant: yes
  • Estimated EOL date: 2022
