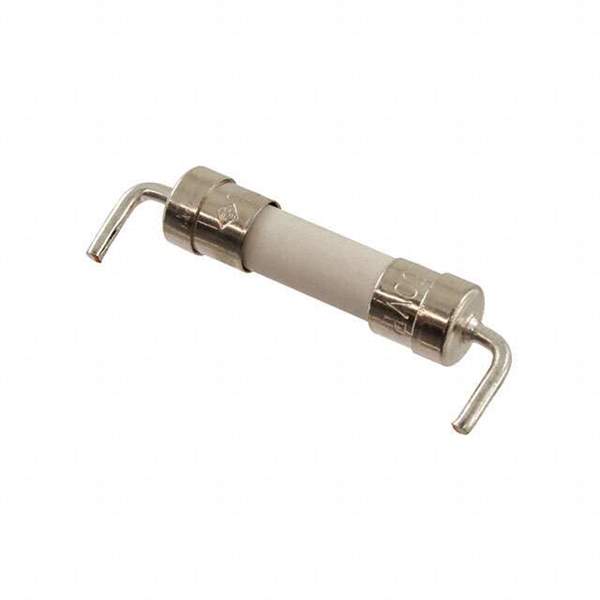

021506.3MXF11P Real Image
Same model may have multiple batches, images only for reference.

021506.3MXF11P

Part No 021506.3MXF11P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 6.3A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 6.3A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package Radial Bend Cylinder
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 128.75
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0108 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802074-021506.3MXF11P
Ultra Librarian 3D Model Ultra Librarian 021506.3MXF11P CAD Model

Description

Littelfuse Inc. 021506.3MXF11P is a ceramic cartridge fuse type with the following specifications:

  • Current Rating: 6.3A
  • Voltage Rating: 250VAC
  • Mounting Type: Through-Hole
  • Manufacturer Package: Radial Bend Cylinder
  • Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Response Time: Slow Blow
  • Melting I2t: 128.75
  • Approvals: CCC, CE, CSA, KC, PSE, SEMKO, UL, and VDE
  • DC Cold Resistance: 0.0108 Ohms
  • Temperature Range: -55°C to 125°C
  • Manufacturer Pack Quantity: 1,000
