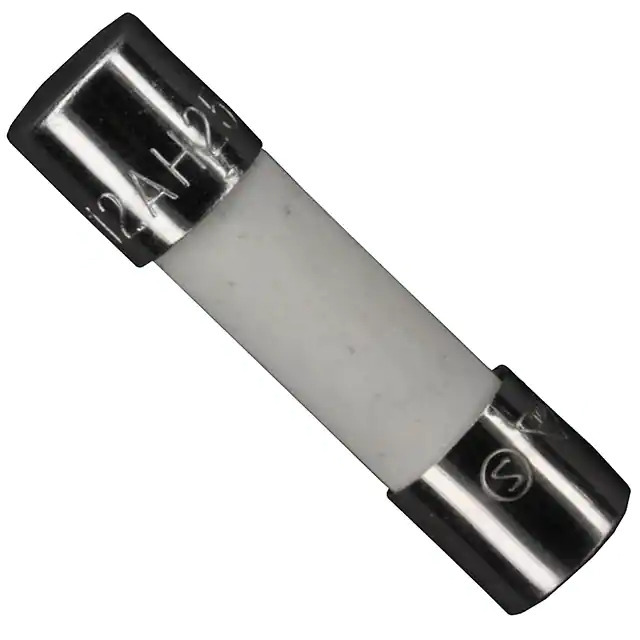

0215005.HXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0215005.HXP

Part No 0215005.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 5A 250VAC 5X20MM / 5 A 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 215
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1.5kA
Melting I²t 66.095
Approval Agency CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0153 Ohms
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361356-0215005.HXP
Ultra Librarian 3D Model Ultra Librarian 0215005.HXP CAD Model

Description

The Littelfuse Inc. 215 series fuse is a cartridge ceramic fuse with a slow blow response time.

  • Manufacturer: Littelfuse Inc.
  • Series: 215
  • Fuse Type: Cartridge Ceramic
  • Response Time: Slow Blow
  • Current Rating: 5A
  • Voltage Rating: 250V AC
  • Operating Temperature: -55°C to 125°C
  • Breaking Capacity: 1.5kA @ rated voltage
  • Size: 5mm x 20mm
  • Mounting Type: Holder
  • Approvals: CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
  • Application: Circuit protection in electronic devices
