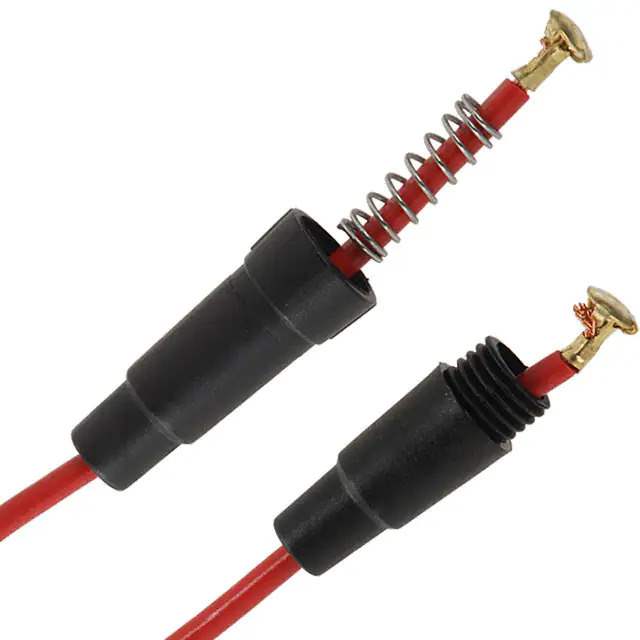

01500274Z Real Image
Same model may have multiple batches, images only for reference.

01500274Z

Part No 01500274Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 350V 10A IN LINE
Datasheet
01500274Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 150
Package Bulk
Product Status Active
Mounting Type Free Hanging (In-Line)
Fuse Size 0.197" Dia x 0.591" ~ 0.787" L (5mm x 15mm ~ 20mm)
Current Rating (Amps) 10 A
For Use With/Related Products 2AG, 5mm x 15mm, 5mm x 20mm
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 350V
Termination Style Wire Leads
Contact Material Brass
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Win Source Part Number 845381-01500274Z
Ultra Librarian 3D Model Ultra Librarian 01500274Z CAD Model

Description

The 845381-01500274Z is a circuit protection fuseholder designed for use with 2AG, 5mm x 15mm, and 5mm x 20mm fuses and is manufactured by Littelfuse Inc.

  • Termination Style: Wire Leads
  • Contact Material: Brass
  • Fuse Size: 0.197" Dia x 0.591" ~ 0.787" L (5mm x 15mm ~ 20mm)
  • Voltage Rating: 350V
  • Current Rating: 10A
  • Mounting Type: Free Hanging (In-Line)
