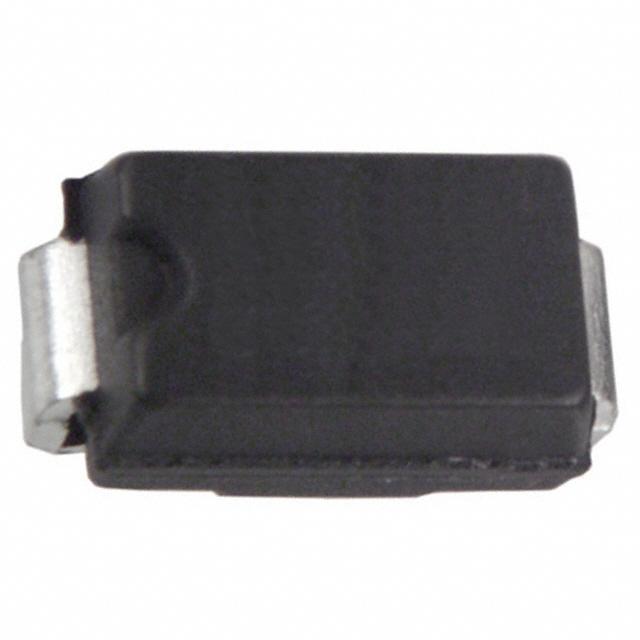

The US1G-7 is an ultrafast recovery rectifier diode manufactured by Lite-On Inc. It's designed for applications demanding rapid switching and minimal power loss. The '-7' likely indicates a specific packaging or testing variant. This diode is commonly used in high-frequency switching power supplies, inverters, and other power conversion circuits.

Applications:

• Switching Mode Power Supplies (SMPS)
• Inverters
• DC-DC converters
• High-frequency rectification
• Freewheeling diode applications
• Snubber circuits

Features:

• Ultrafast recovery time
• Low forward voltage drop
• High current capability
• Surface Mount Device (SMD)
• High Reliability
• RoHS Compliant

Benefits:

• Improved efficiency in high-frequency circuits due to reduced switching losses.
• Lower power dissipation, leading to reduced heat generation.
• Ability to handle high current surges without damage.
• Suitable for automated assembly processes, reducing manufacturing costs.
• Long-lasting performance and dependability.
• Environmentally friendly due to compliance with RoHS standards.

Technical Specifications:

The US1G-7 features a low forward voltage drop, which minimizes power loss during conduction. Its key attribute is its ultrafast reverse recovery time, typically in the nanosecond range, crucial for minimizing losses in high-frequency switching applications. It is essential to consult the Lite-On Inc. datasheet for the US1G-7 to determine the exact maximum repetitive peak reverse voltage (VRRM), average forward current (IF(AV)), and surge current rating (IFSM) to ensure it meets the specific requirements of the application. The package is typically a surface-mount type, such as SMA, to facilitate automated assembly.

When using the US1G-7, proper thermal management is important to prevent overheating, especially at higher currents. The diode should be mounted on a PCB with adequate heat dissipation capabilities. Refer to the datasheet for recommended soldering profiles and mounting guidelines. This rectifier offers a reliable and efficient solution for a wide array of power conversion applications, providing a balance of speed, current handling, and ease of assembly.
