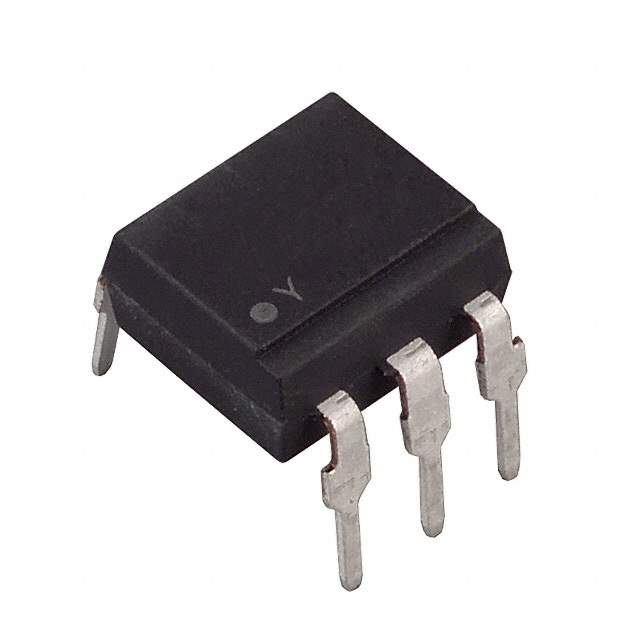

The Lite-On Inc. Optoisolator is a high popularity product that comes with a Win Source Part Number of 044937-MOC3052. and is currently in balance in terms of supply and demand.

• Category: Isolator
• Family: Optoisolators - Triac SCR Output
• Package: 6-DIP (0.300" 7.62mm)
• Manufacturer Device Package: 6-DIP
• Approval: CSA FIMKO UL
• Operating Temperature: -40°C to 100°C
• Voltage - Off State: 600V
• Voltage - Isolation: 5000Vrms
• Current - DC Forward (If) (Max): 50mA
• Voltage - Forward (Vf) (Typ): 1.2V
• Number of Channels: 1
• Current - Hold (Ih): 400µA (Typ)
• Static dV/dt (Min): 1kV/µs
• Current - LED Trigger (Ift) (Max): 10mA
• Alternative Parts (Cross-Reference): BRT12M and BRT12-M
• Introduction Date: January 00, 1900
• ECCN: EAR99
• Estimated EOL Date: 2023
