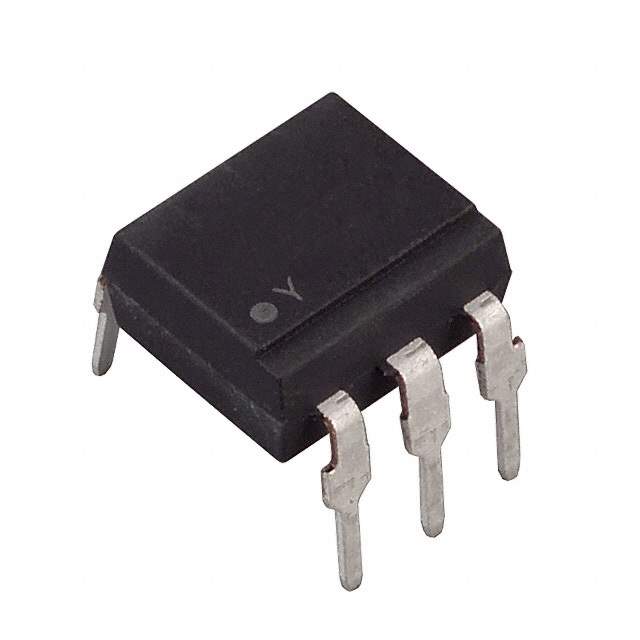

Same model may have multiple batches, images only for reference.

MOC3020

Name: MOC3020
Brand: Lite-On Inc.
SKU: 238258
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MOC3020
Manufacturer	Lite-On Inc.
Catalog	Optoisolators - Triac, SCR Output
Description	Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
Datasheet	MOC3020 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators
Family	Optoisolators - Triac, SCR Output
Manufacturer	Lite-On Inc.
Packaging	Tube
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	5000Vrms
Voltage - Off State	400V
Static dV/dt (Min)	1kV/μs
Current - LED Trigger (Ift) (Max)	30mA
Current - Hold (Ih)	250μA (Typ)
Voltage - Forward (Vf) (Typ)	1.15V
Current - DC Forward (If) (Max)	50mA
Operating Temperature Range	-40°C ~ 100°C
Mounting Style	Through Hole
Package	6-DIP (0.300", 7.62mm)
Manufacturer Device Package	6-DIP
Approvals	CQC, CSA, TUV, UL, VDE
Win Source Part Number	024168-MOC3020
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Industrial, Motor Drive & Control, Consumer Electronics
Quantity per package	65
Ultra Librarian 3D Model	Ultra Librarian MOC3020 CAD Model

Description

The Lite-On Inc. MOC3020 is a high-performance optoisolator that features a triac output.

Output: Triac
Applications: Industrial, motor drive & control, and consumer electronics
Current Rating: 50mA
Forward Voltage: 1.15V
Voltage Rating: 400V
Isolation Voltage: 5000Vrms
Package: 6-DIP
Temperature Range: -40°C to 100°C
Approvals: CQC, CSA, TUV, UL, and VDE
Market Status: Common-used part with high popularity
