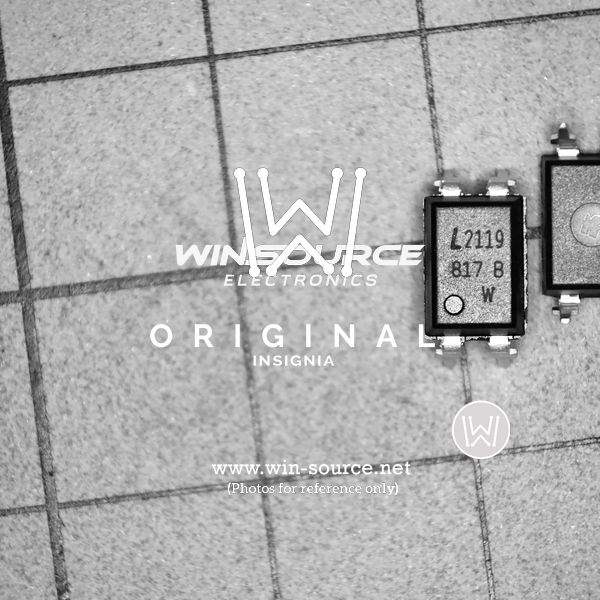

LTV-817-B Lite-On Inc. LTV-817-B label picture LTV-817-B Real Image LTV-817-B real image
Same model may have multiple batches, images only for reference.
LTV-817-B Lite-On Inc. LTV-817-B label picture LTV-817-B Real Image LTV-817-B real image
LTV-817-B Lite-On Inc. LTV-817-B label picture LTV-817-B Real Image LTV-817-B real image
Same model may have multiple batches, images only for reference.

LTV-817-B

Part No LTV-817-B
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 130% @ 5mA
Maximum DC Current Transfer Ratio 260% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 110°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 98612-LTV-817-B
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian LTV-817-B CAD Model

Description

The LTV-817-B from Lite-On Inc. is an isolator with a transistor output. It is a high popularity device with a sufficient supply and demand status.

  • Minimum DC Current Transfer Ratio: 130% @ 5mA
  • Maximum DC Current Transfer Ratio: 260% @ 5mA
  • Common Applications: Motor control, power supplies, and industrial automation
