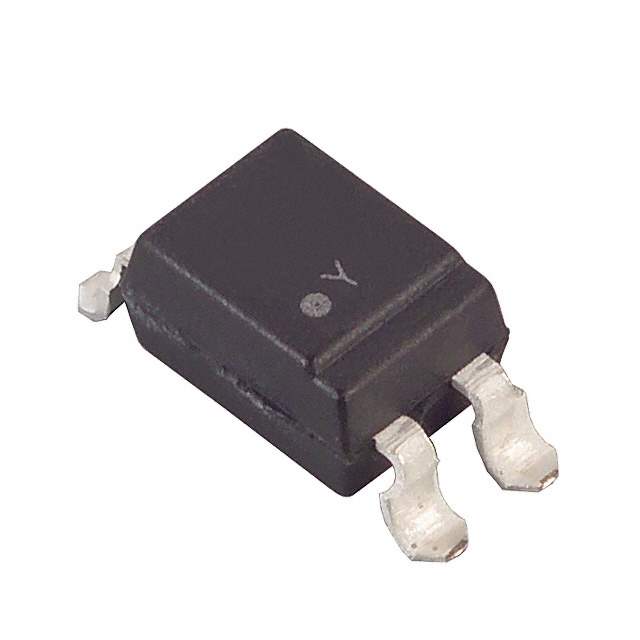

LTV-814S-TA1 Real Image LTV-814S-TA1 Real Image1 LTV-814S-TA1 Real Image2
Same model may have multiple batches, images only for reference.
LTV-814S-TA1 Real Image LTV-814S-TA1 Real Image1 LTV-814S-TA1 Real Image2
LTV-814S-TA1 Real Image LTV-814S-TA1 Real Image1 LTV-814S-TA1 Real Image2
Same model may have multiple batches, images only for reference.

LTV-814S-TA1

Part No LTV-814S-TA1
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-SMD
Datasheet
LTV-814S-TA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 20% @ 1mA
Maximum DC Current Transfer Ratio 300% @ 1mA
Rise and Fall Time 4μs, 3μs
Input Type AC, DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 110°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 020732-LTV-814S-TA1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian LTV-814S-TA1 CAD Model

Description

The LTV-814S-TA1 is a single-channel transistor output optocoupler designed for use in a variety of applications, including motor control, power supply regulation, and digital logic ground isolation. This optocoupler is manufactured by Lite-On Inc. and features an isolation voltage of 5000Vrms.

  • Package: 4-SMD
  • Minimum DC Current Transfer Ratio: 20% @ 1mA
  • Maximum DC Current Transfer Ratio: 300% @ 1mA
