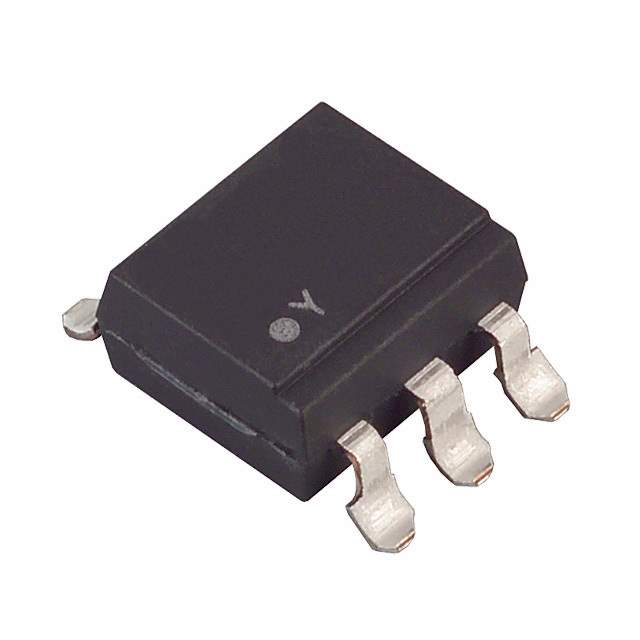

The LTV-702FS is a high-CTR (Current Transfer Ratio) phototransistor optocoupler manufactured by Lite-On Inc. It provides electrical isolation between input and output circuits while allowing signal transfer. This device is often used in applications requiring safety isolation or noise reduction.

Applications

• Power supplies
• Industrial control systems
• Motor control
• Digital logic inputs
• Microprocessor interfaces
• Signal isolation

Features

• High Current Transfer Ratio (CTR)
• High Isolation Voltage
• Compact package
• Surface mount package
• RoHS compliant

Benefits

• Provides excellent electrical isolation
• Simplifies circuit design
• Reduces noise and interference
• Enhances system safety
• Saves board space

Additional Details

The LTV-702FS consists of an infrared emitting diode (IRED) and a phototransistor. When current flows through the IRED, it emits infrared light, which activates the phototransistor. The CTR specifies the ratio of the output current to the input current. A high CTR allows for efficient signal transfer with minimal input current. The isolation voltage indicates the maximum voltage that the optocoupler can withstand between the input and output. The datasheet will specify the exact CTR range, isolation voltage, forward voltage, collector-emitter voltage, and operating temperature range.

Proper design and layout are essential for optimal performance. Refer to Lite-On Inc.'s application notes for recommended circuit configurations and PCB layout guidelines. The datasheet also specifies the maximum power dissipation and derating curves. The device is sensitive to electrostatic discharge (ESD), and appropriate ESD precautions should be taken during handling and assembly. This optocoupler helps to prevent ground loops and protects sensitive circuits from high voltage transients.
