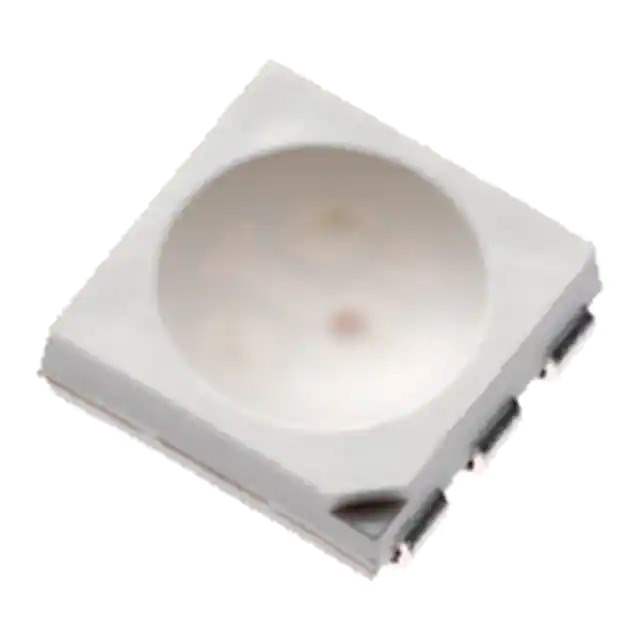

The LTST-G563EGBW is a discrete LED indication component manufactured by Lite-On Inc.

• Series: LTST-G563
• Packaging: Tape and Reel
• Standard Package: 1,000 pieces
• Size/Dimension: 5.00mm L x 5.00mm W
• Height: 1.60mm
• Configuration: Independent RGB
• Lens Transparency: Diffused
• Viewing Angle: 120 degrees
• Millicandela Rating (Red): 840mcd
• Millicandela Rating (Green): 2100mcd
• Millicandela Rating (Blue): 420mcd
• Forward Voltage (Red): 2.2V @ 20mA
• Forward Voltage (Green): 3.3V @ 20mA
• Forward Voltage (Blue): 3.3V @ 20mA
• Dominant Wavelength (Red): 623nm
• Dominant Wavelength (Green): 525nm
• Dominant Wavelength (Blue): 470nm
• Peak Wavelength (Red): 630nm
• Peak Wavelength (Green): 518nm
• Peak Wavelength (Blue): 468nm
• Mounting Type: Surface Mount
• Package/Case: 6-SMD, J-Lead
• Lens Style: Round
• Lens Size: 4.00mm Diameter
• MSL Level: 3 (168 Hours)
• Product Status: Active
• REACH: Unaffected
