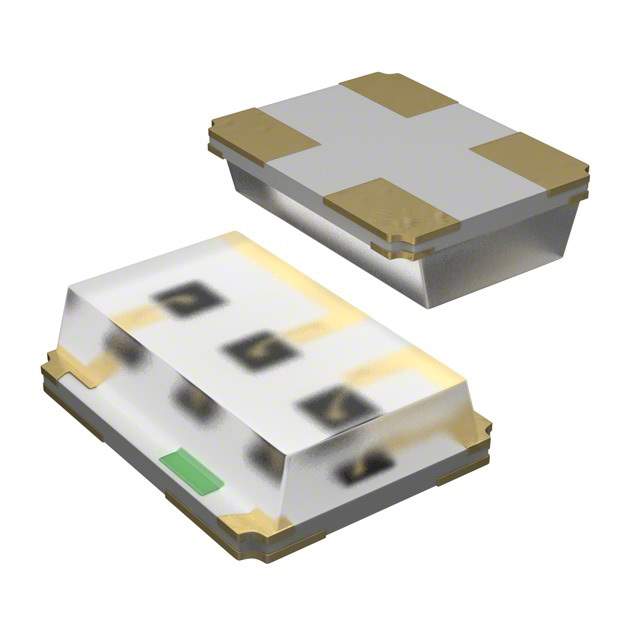

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Color Blue, Green, Orange
Configuration Common Anode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 104mcd Blue, 261mcd Green, 113mcd Orange
Lens Style/Size Rectangle with Flat Top
Forward Voltage 3.5V Blue, 3.5V Green, 2V Orange
Current - Test 20mA Blue, 20mA Green, 20mA Orange
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Dominant 470nm Blue, 525nm Green, 605nm Orange
Wavelength - Peak 468nm Blue, 520nm Green, 611nm Orange
Case / Package Chip LED
Height (Max) 0.55mm
Win Source Part Number 1064410-LTST-C19FD1WT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LTST-C19FD1WT CAD Model

Description

The LTST-C19FD1WT is a chip LED manufactured by Lite-On Inc.

  • Packaging: Reel - TR
  • Colors: Blue, Green, and Orange
  • Mounting: SMD (SMT)
  • Configuration: Common Anode
  • Forward Voltage (Blue and Green): 3.5V
  • Forward Voltage (Orange): 2V
  • Viewing Angle: 130°
  • Lens Color: White
  • Lens Transparency: Diffused
  • Millicandela Rating (Blue): 104mcd
  • Millicandela Rating (Green): 261mcd
  • Millicandela Rating (Orange): 113mcd
  • Lens Style/Size: Rectangle with a Flat Top
  • Current - Test: 20mA (All Colors)
  • Wavelength - Dominant (Blue): 470nm
  • Wavelength - Dominant (Green): 525nm
  • Wavelength - Dominant (Orange): 605nm
  • Wavelength - Peak (Blue): 468nm
  • Wavelength - Peak (Green): 520nm
  • Wavelength - Peak (Orange): 611nm
  • Height (Max): 0.55mm
