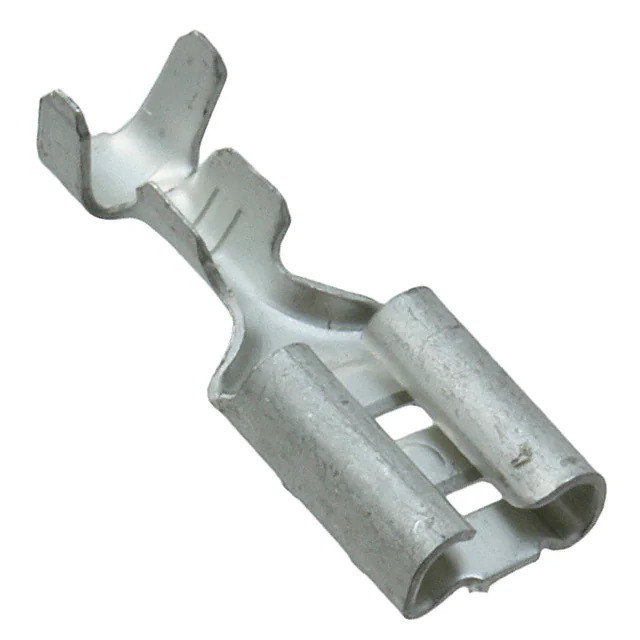

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.252" (6.40mm)
Length - Overall 0.591" (15.00mm)
Termination Crimp
Wire Gauge 20-24 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.059" ~ 0.098" (1.50mm ~ 2.50mm)
Base Product Number 170214
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364716-170214-2
Ultra Librarian 3D Model Ultra Librarian 170214-2 CAD Model

Description

The TE Connectivity AMP Connectors Faston Quick Connect Terminal is a reliable and efficient component for quick and easy electrical connections.

  • Manufacturer: TE Connectivity AMP Connectors
  • Product: Faston Quick Connect Terminal
  • Terminal Type: Female
  • Termination: Crimp
  • Wire Gauge: 20 to 24 AWG
  • Contact Finish: Tin
  • Series: Faston
  • Mounting: Free Hanging (In-Line)
  • Overall Length: 0.591" (15.00mm)
  • Product Status: Active
